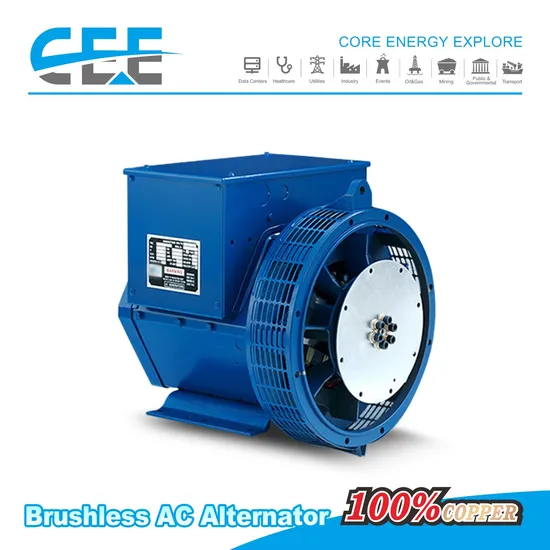

64kw 80kVA Stanford Type Three-Phase Brushless AC Alternator
| Negotiable | 15 Pieces (MOQ) |
Basic Info.
Model NO.
JLT-224GS
Output Type
AC Three Phase
Cooling
Method
Method
Air Cooled
Installation
Method
Method
Fixed
Generator
Type
Type
AC Alternator
Excitation Mode
AC Rotating Exciter
Poles
4p
Protection
IP22
Package Gross Weight
355kg
Transport Package
Plywood Case
Specification
90X55X84cm
Trademark
jlt-power/lighting star
Origin
Fujian
Production Capacity
10000
Product Description
Product Description· Brushless synchronous alternator· Output range:6.8kW - 3200kW single-phase and three-phase
· High-performance Convenient installation and maintenance· Three phase 4 wire, optional 50Hz/60Hz, 1500/1800RPM· 4-pole, brushless alternator with AVR, H class insulation, IP23· Be suitable for various brands engine, international standard SAE port, double bearing as optional Specifications:
Product Parameters
| Model | 400V/50Hz PF0.8 ClassH | 440V/60Hz PF0.8 ClassH | Specifications | ||||||||
| Prime Power 40ºC | Standby Power 27ºC | Prime Power 40ºC | Standby Power 27ºC | Single Bearing Packed Size/Weight | |||||||
| KW | KVA | KW | KVA | KW | KVA | KW | KVA | cm | KGS | ||
| JLT164A | 6.5 | 8.1 | 7.2 | 9.0 | 8.2 | 10.3 | 9.0 | 11.3 | 49X45X58 | 86 | |
| JLT164B | 8.8 | 11.0 | 9.8 | 12.2 | 11.0 | 13.8 | 12.1 | 15.1 | 49X45X58 | 93 | |
| JLT164C | 10.8 | 13.5 | 12.0 | 15.0 | 13.5 | 16.9 | 14.9 | 18.6 | 49X45X58 | 98 | |
| JLT164D | 12.8 | 16.0 | 14.2 | 17.8 | 16.0 | 20.0 | 17.6 | 22.0 | 49X45X58 | 108 | |
| JLT184ES | 16.0 | 20.0 | 17.6 | 22.0 | 18.8 | 23.5 | 20.7 | 25.9 | 55X49X58 | 117 | |
| JLT184E | 18.0 | 22.5 | 20.0 | 25.0 | 23.0 | 28.8 | 25.3 | 31.6 | 55X49X58 | 133 | |
| JLT184FS | 20.0 | 25.0 | 22.0 | 27.5 | 24.0 | 30.0 | 26.4 | 33.0 | 63X49X58 | 143 | |
| JLT184F | 22.0 | 27.5 | 24.4 | 30.5 | 27.5 | 34.4 | 30.3 | 37.8 | 63X49X58 | 151 | |
| JLT184GS | 24.0 | 30.0 | 27.0 | 33.7 | 28.2 | 35.3 | 31.0 | 38.8 | 63X49X58 | 160 | |
| JLT184G | 25.0 | 31.3 | 27.8 | 34.7 | 30.0 | 37.5 | 33.0 | 41.3 | 63X49X58 | 173 | |
| JLT184H | 30.0 | 37.5 | 33.3 | 41.6 | 37.5 | 46.9 | 41.3 | 51.6 | 70X49X70 | 188 | |
| JLT184J | 34.0 | 42.5 | 35.5 | 44.4 | 40.0 | 50.0 | 44.0 | 55.0 | 70X49X70 | 199 | |
| JLT224C | 34.0 | 42.5 | 37.4 | 46.8 | 42.0 | 52.5 | 45.0 | 56.3 | 78X49X84 | 233 | |
| JLT224DS | 36.8 | 46.0 | 40.1 | 50.1 | 42.5 | 53.1 | 46.3 | 57.9 | 78X49X84 | 240 | |
| JLT224D | 40.0 | 50.0 | 44.4 | 55.5 | 50.0 | 62.5 | 53.0 | 66.3 | 78X49X84 | 249 | |
| JLT224E | 48.0 | 60.0 | 50.4 | 63.0 | 56.0 | 70.0 | 60.0 | 75.0 | 86X55X84 | 277 | |
| JLT224FS | 54.0 | 67.5 | 58.9 | 73.6 | 60.8 | 76.0 | 66.2 | 82.8 | 86X55X84 | 295 | |
| JLT224F | 58.0 | 72.5 | 64.0 | 80.0 | 70.0 | 87.5 | 76.0 | 95.0 | 86X55X84 | 313 | |
| JLT224G | 68.0 | 85.0 | 72.6 | 90.8 | 78.0 | 97.5 | 85.0 | 106.3 | 90X55X84 | 355 | |
| JLT224GM | 75.0 | 93.8 | 81.6 | 102.0 | 88.0 | 110.0 | 95.2 | 119.0 | 90X55X84 | 393 | |
| JLT274CS | 75.0 | 93.8 | 81.8 | 102.2 | 88.0 | 110.0 | 95.9 | 119.9 | 88X63X94 | 360 | |
| JLT274C | 80.0 | 100.0 | 88.0 | 110.0 | 94.0 | 117.5 | 102.0 | 127.5 | 88X63X94 | 371 | |
| JLT274DS | 90.0 | 112.5 | 98.1 | 122.6 | 108.0 | 135.0 | 117.8 | 147.2 | 88X63X94 | 402 | |
| JLT274D | 96.0 | 120.0 | 104.0 | 130.0 | 110.0 | 137.5 | 120.0 | 150.0 | 88X63X94 | 423 | |
| JLT274ES | 100.0 | 125.0 | 109.0 | 136.3 | 115.0 | 143.8 | 126.5 | 158.1 | 98X63X94 | 430 | |
| JLT274E | 112.0 | 140.0 | 120.0 | 150.0 | 134.0 | 167.5 | 145.0 | 181.3 | 98X63X94 | 460 | |
| JLT274FS | 120.0 | 150.0 | 133.2 | 166.5 | 138.0 | 172.5 | 151.8 | 189.8 | 98X63X94 | 483 | |
| JLT274F | 128.0 | 160.0 | 140.0 | 175.0 | 152.0 | 190.0 | 165.0 | 206.3 | 98X63X94 | 513 | |
| JLT274G | 145.6 | 182.0 | 160.0 | 200.0 | 174.8 | 218.5 | 187.2 | 234.0 | 104X63X94 | 563 | |
| JLT274H | 160.0 | 200.0 | 176.0 | 220.0 | 196.0 | 245.0 | 212.0 | 265.0 | 108X63X94 | 615 | |
| JLT274J | 184.0 | 230.0 | 208.0 | 260.0 | 225.0 | 281.3 | 244.8 | 306.0 | 115X63X94 | 623 | |
| JLT274K | 200.0 | 250.0 | 220.0 | 275.0 | 239.0 | 298.8 | 256.0 | 320.0 | 115X63X94 | 688 | |
| JLT404C | 200.0 | 250.0 | 220.0 | 275.0 | 240.0 | 300.0 | 264.0 | 330.0 | 122X70X104 | 800 | |
| JLT404DS | 220.0 | 275.0 | 244.2 | 305.3 | 252.8 | 316.0 | 276.8 | 346.0 | 122X70X104 | 830 | |
| JLT404D | 240.0 | 300.0 | 264.0 | 330.0 | 288.0 | 360.0 | 316.0 | 395.0 | 122X70X104 | 878 | |
| JLT404ES | 260.0 | 325.0 | 288.6 | 360.8 | 300.0 | 375.0 | 330.0 | 412.5 | 122X70X104 | 920 | |
| JLT404E | 280.0 | 350.0 | 304.0 | 380.0 | 336.0 | 420.0 | 364.0 | 455.0 | 122X70X104 | 970 | |
| JLT404FS | 300.0 | 375.0 | 330.0 | 412.5 | 348.0 | 435.0 | 382.8 | 478.5 | 133X70X104 | 1088 | |
| JLT404F | 320.0 | 400.0 | 352.0 | 440.0 | 384.0 | 480.0 | 424.0 | 530.0 | 133X70X104 | 1103 | |
| JLT404FM | 360.0 | 450.0 | 396.0 | 495.0 | 392.0 | 490.0 | 432.0 | 540.0 | 133X70X104 | 1150 | |
| JLT544C | 400.0 | 500.0 | 416.0 | 520.0 | 440.0 | 550.0 | 480.0 | 600.0 | 138X80X115 | 1213 | |
| JLT544D | 440.0 | 550.0 | 472.0 | 590.0 | 475.0 | 593.8 | 515.2 | 644.0 | 138X80X115 | 1363 | |
| JLT544ES | 450.0 | 562.5 | 495.4 | 619.3 | 536.0 | 670.0 | 581.6 | 727.0 | 138X80X115 | 1410 | |
| JLT544E | 488.0 | 610.0 | 532.0 | 665.0 | 570.0 | 712.5 | 615.2 | 769.0 | 138X80X115 | 1459 | |
| JLT544FS | 500.0 | 625.0 | 555.0 | 693.8 | 588.0 | 735.0 | 646.8 | 808.5 | 149X80X115 | 1580 | |
| JLT544F | 536.0 | 670.0 | 590.4 | 738.0 | 620.0 | 775.0 | 675.2 | 844.0 | 149X80X115 | 1632 | |
| JLT544FM | 560.0 | 700.0 | 616.0 | 770.0 | 640.0 | 800.0 | 695.2 | 869.0 | 149X80X115 | 1652 | |
| JLT544FM1 | 600.0 | 750.0 | 632.0 | 790.0 | 684.0 | 855.0 | 718.4 | 898.0 | 149X80X115 | 1685 | |
| JLT634B | 600.0 | 750.0 | 632.0 | 790.0 | 684.0 | 855.0 | 718.4 | 898.0 | 178X97X133 | 1866 | |
| JLT634C | 640.0 | 800.0 | 672.0 | 840.0 | 733.0 | 916.3 | 766.4 | 958.0 | 178X97X133 | 1950 | |
| JLT634D | 728.0 | 910.0 | 764.0 | 955.0 | 834.0 | 1042.5 | 872.0 | 1090.0 | 178X97X133 | 2002 | |
| JLT634E | 800.0 | 1000.0 | 840.0 | 1050.0 | 916.0 | 1145.0 | 956.0 | 1195.0 | 178X97X133 | 2142 | |
| JLT634F | 904.0 | 1130.0 | 948.0 | 1185.0 | 1019.0 | 1273.8 | 1063.2 | 1329.0 | 178X97X133 | 2375 | |
| JLT634G | 1000.0 | 1250.0 | 1050.4 | 1313.0 | 1109.0 | 1386.3 | 1158.4 | 1448.0 | 186X97X133 | 2721 | |
| JLT634GM | 1120.0 | 1400.0 | 1184.0 | 1480.0 | 1296.0 | 1620.0 | 1388.0 | 1735.0 | 186X97X133 | 2830 | |
| JLT734B | 1120.0 | 1400.0 | 1200.0 | 1500.0 | 1300.0 | 1625.0 | 1392.0 | 1740.0 | 186X105X149 | 2750 | |
| JLT734C | 1240.0 | 1550.0 | 1328.0 | 1660.0 | 1452.0 | 1815.0 | 1556.0 | 1945.0 | 186X105X149 | 3000 | |
| JLT734D | 1320.0 | 1650.0 | 1416.0 | 1770.0 | 1548.0 | 1935.0 | 1656.0 | 2070.0 | 215X101X159 | 3275 | |
| JLT734E | 1520.0 | 1900.0 | 1628.0 | 2035.0 | 1768.0 | 2210.0 | 1892.0 | 2365.0 | 215X101X159 | 3560 | |
| JLT734F | 1664.0 | 2080.0 | 1800.0 | 2250.0 | 2000.0 | 2500.0 | 2140.0 | 2675.0 | 220X101X159 | 3830 | |
| JLT734G | 1760.0 | 2200.0 | 1888.0 | 2360.0 | 2028.0 | 2535.0 | 2172.0 | 2715.0 | 220X101X159 | 4000 | |
| JLT734H | 2060.0 | 2575.0 | 2224.0 | 2780.0 | 2350.0 | 2937.5 | 2537.6 | 3172.0 | 234X101X159 | 4300 | |
| JLT864A | 2100.0 | 2625.0 | 2310.0 | 2887.5 | 2400.0 | 3000.0 | 2640.0 | 3300.0 | 229X145X161(2) | 4870(2) | |
| JLT864B | 2200.0 | 2750.0 | 2420.0 | 3025.0 | 2500.0 | 3125.0 | 2750.0 | 3437.5 | 229X145X161(2) | 4960(2) | |
| JLT864C | 2300.0 | 2875.0 | 2530.0 | 3162.5 | 2600.0 | 3250.0 | 2860.0 | 3575.0 | 239X145X161(2) | 5350(2) | |
| JLT864D | 2400.0 | 3000.0 | 2640.0 | 3300.0 | 2750.0 | 3437.5 | 3025.0 | 3781.3 | 239X145X161(2) | 5420(2) | |
| JLT864E | 2500.0 | 3125.0 | 2750.0 | 3437.5 | 2850.0 | 3562.5 | 3135.0 | 3918.8 | 255X145X161(2) | 5990(2) | |
| JLT864F | 2600.0 | 3250.0 | 2860.0 | 3575.0 | 3000.0 | 3750.0 | 3300.0 | 4125.0 | 255X145X161(2) | 6070(2) | |
| JLT964A | 2700.0 | 3375.0 | 2970.0 | 3712.5 | 3100.0 | 3875.0 | 3410.0 | 4262.5 | 230X155X173(2) | 7480(2) | |
| JLT964B | 2800.0 | 3500.0 | 3080.0 | 3850.0 | 3200.0 | 4000.0 | 3520.0 | 4400.0 | 230X155X173(2) | 7610(2) | |
| JLT964C | 2900.0 | 3625.0 | 3190.0 | 3987.5 | 3300.0 | 4125.0 | 3630.0 | 4537.5 | 240X155X173(2) | 7750(2) | |
| JLT964D | 3000.0 | 3750.0 | 3300.0 | 4125.0 | 3400.0 | 4250.0 | 3740.0 | 4675.0 | 240X155X173(2) | 7870(2) | |
| JLT964E | 3100.0 | 3875.0 | 3410.0 | 4262.5 | 3550.0 | 4437.5 | 3905.0 | 4881.3 | 250X155X173(2) | 7990(2) | |
| JLT964F | 3200.0 | 4000.0 | 3520.0 | 4400.0 | 3650.0 | 4562.5 | 4015.0 | 5018.8 | 250X155X173(2) | 8100(2) | |
