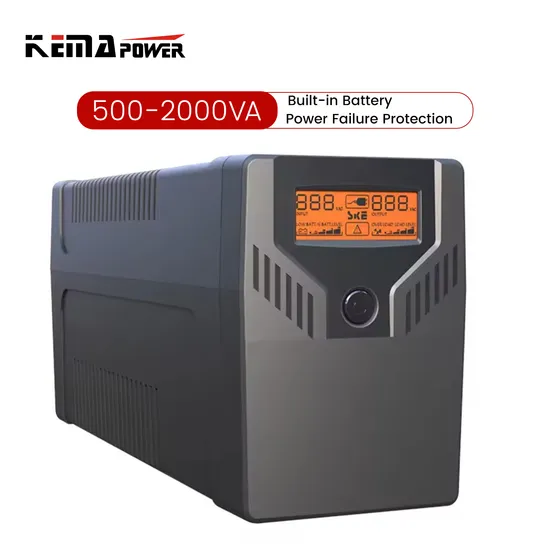

Smart Intelligent UPS Plastic Case Long Backup Time 1kVA UPS with High Quality
| US$15.00-52.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SMD-PSK
Protection
Overvoltage
Application
Industry
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Medium Type
Equipment Mode
Centralized Model
Brand
Kemapower
Product Weight
4-11kg
Transport Package
Safety Packing
Specification
315*100*143 / 333*130*185 mm
Trademark
KEMAPOWER
Origin
China
HS Code
8504402000
Production Capacity
600, 000PCS/Year
Product Description
Line Interactive UPSSMD-PSK 500VA/300W-2000VA/1200W KEY FEATURES Plastic case, Line interactive UPS 500VA-2000VA Input output 220V/230V Output 220/230VAC±10%, with bypass output CPU Control, SMT Technology, Boost and Buck AVR Full Protection, Short circuit, Overload and else LED display and alarm function, Silence Settable Intelligent battery management AUTO Restart while AC recovers Off charge and cold start function Suitable for PC, router, POS, communication and industrial Control products USB and RJ45 Communication Port option LCD display is option TECHNICAL SPECIFICATIONS
| MODEL | SMD400PSK | SMD600PSK | SMD800PSK | SMD1000PSK | SMD1200PSK | SMD1500PSK | SMD2000PSK | |
| Capacity | 500VA/300W | 600VA/360W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W | |
| Input | Input Voltage Range | 140-300Vac | ||||||
| Frequency Range | >40Hz(Auto sensing) | |||||||
| Output | Output Voltage | 220/230VAC±10% | ||||||
| Output Frequency | 60HZ±1Hz or 50HZ±1Hz(Bat. Mode) | |||||||
| Output Wave Form | Modified Sine Wave ( Bat Mode ) | |||||||
| Transfer Time | Typical 2-8ms,13ms max | |||||||
| Battery | DC Voltage | 12VDC | 24VDC | |||||
| Internal Battery | 1*6AH | 1*7AH | 1*9AH | 2*7AH | 2*7AH | 2*9AH | 2*9AH | |
| Charge Current | 1A | |||||||
| Recharge Time | 4-6 hours recover to 90% capacity | |||||||
| Protection | Full Protection | Low voltage, overload, short circuit, battery low Voltage protection | ||||||
| Display | LED | AC mode: Green LED lighting; | ||||||
| DC mode: Yellow LED flash; | ||||||||
| Fault: Red LED lighting | ||||||||
| LCD | IP /OP VAC HZ , Load level , bat level, Low bat, fault, overload | |||||||
| Output Socket | 2*S11/6*S13/2*S05/4*S04/2*S14, default S11 | 4*S11/8*S13/4*S05/6*S04/4*S14, default S11 | ||||||
| Alarm | Battery Mode | Sounding every 10 seconds | ||||||
| Low Battery | Sounding every seconds | |||||||
| Overload | Sounding every 0.5 seconds | |||||||
| Fault | Continuously sounding | |||||||
| Enviromental Characteristics | Ambient Temp. | 0 to 40 degree celsius | ||||||
| Relative Humidity | 0% to 90% | |||||||
| Storage Temp. | -15 to 40 degree celsius | |||||||
| Noise Level | 40dB(Max) | |||||||
| Communication Port | RJ45 & USB | Optional | ||||||
| Product Size mm | 315*100*143 | 333*130*185 | ||||||
| Product Weight KG | 4.34 | 4.56 | 5.19 | 4.08 | 4.6 | 10.5 | 11 | |
| PCS/CTN | 4 | 2 | ||||||
| Carton Size mm | 594*391*237 | 420*391*290 | ||||||
| Gorss Weight KG | 18.3 | 19.2 | 21.72 | 17.2 | 19.2 | 21.75 | 22 | |
