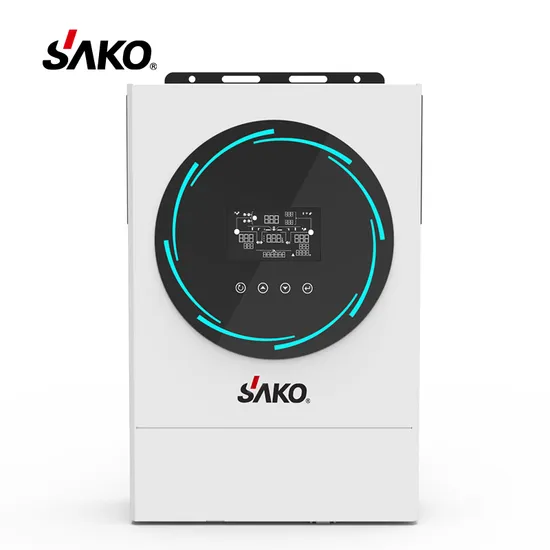

Cheap Sako Sunpolo 6kw on off Grid Hybrid Solar Inverter for Home
Basic Info.
Model NO.
6kw
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
6kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Sako
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Keyword
Solar Energy Power Inverter
Output Type
Single
Size
456*303*147mm
Output Current
26A
Input Voltage
48VDC
Weight
13.5kg
Output Waveform
Pure Shine Wave
Inverter Efficiency
93%
Product Name
Grid Hybrid Solar Inverter
OEM
Accepted
Output Voltage
230VAC
Application
Solar Power System Home
Output Frequency
50Hz/60Hz
Display
LCD+LED Display
Rated Power
6kw
Transport Package
Carton
Specification
456*303*147mm
Trademark
SAKO
Origin
Henan, China
Production Capacity
1000 Piece/Pieces Per Month
Packaging & Delivery
Package Size
50.00cm * 35.00cm * 20.00cm
Package Gross Weight
20.000kg
Product Description
Product Description Cheap Sako Sunpolo 6KW ON Off Grid Hybrid Solar Inverter For HomeSUNPOLO 6KWOn&Off Grid inverter 1. 120A MPPT solar charger inside, max pv input 6kw+ (27A ) 2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 9 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
7. On grid and off grid solar inverter, support self-consumption and feed into the grid.
8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 450Vdc),
support no battery working during the day time. Specification
| Model No. | SUNPOLO 6KW |
| Basical information | |
| Max. PV Input Power | 6000W |
| Rated AC Output Power | 6000W |
| Grid-Tie Operation | |
| PV Input (DC) | |
| Nominal DC Volt/Max DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 120VDC |
| MPPT Voltage Range | 120-450VDC |
| No. of MPPT Tracker/Max. Input Current | 1/27A |
| Grid Output (AC) | |
| Nominal Output Volt | 230Vac, Single Phase (dual AC output) |
| Output Voltage Range | 184V-265Vac or 195-253V (Selectable) |
| Nominal Output Current | 26.0A |
| Power Factor | >0.9 |
| Efficiency | |
| Max. Conversion Efficiency (DC/AC) | 96% |
| Off-Grid Operation | |
| AC Input (AC) | |
| AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac |
| Acceptable Input Voltage Range | 90-280Vac or 170-280Vac |
| Max. AC Input Current | 40A |
| PV Input (DC) | |
| Max. DC Voltage | 500VDC |
| MPPT Voltage Range | 120-450VDC |
| No. of MPPT Tracker/Max. Input Current | 1/27A |
| Grid Tie Mode | |
| Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase |
| Feed-in Voltage Range | 184V-265Vac |
| Max Efficiency DC/AC | >95% |
| Battery Mode Output | |
| Nominal Output Volt | 220Vac/230Vac/240Vac (dual AC output) |
| DC output | 1pc*12Vdc/10A Max |
| Waveform | Pure sine wave |
| Efficiency(DC to AC) | 93% |
| Hybrid Operation | |
| PV Input (DC) | |
| Nominal DC Volt/Max DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 120VDC |
| MPPT Voltage Range | 120-450VDC |
| No. of MPPT Tracker/Max. Input Current | 1/27A |
| Grid Output (AC) | |
| Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase (dual AC output) |
| Output Voltage Range | 184V-265Vac or 195-253V (Selectable) |
| Nominal Output Current | 26.0A |
| AC Input (AC) | |
| AC Start-up Voltage/Auto Restart Volt. | 120Vac-140Vac/180Vac |
| Acceptable Input Voltage Range | 90-280Vac or 170-280Vac |
| Max. AC Input Current | 40A |
| Battery Mode Output | |
| Nominal Output Volt | 220Vac/230Vac/240Vac (dual AC output) |
| DC output | 1pc*12Vdc/10A Max |
| Waveform | Pure sine wave |
| Efficiency(DC to AC) | 93% |
| Battery & Charger | |
| Battery Type Supported | Lead Acid/VRLA/AGM/GEL/Flooded/Tubular/LiFePO4 |
| Nominal Battery Voltage | 48Vdc |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 120A |
| Max Total Charge Current | 120A |
| General | |
| Physical | |
| Products Dimension,D X W X H (mm) | 456*303*148 |
| Product Net Weight(kgs) | 12 |
| Packing Dimension,D X W X H (mm) | 535mm*382*mm*224mm,1PC/CTN |
| Gross Weight(kgs) | 13.5 |
| Parallel functions Optional | Yes, optional, max 9pcs |
| Communication Interface | RS232,USB,RS485,WIFI |
| Environment | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10ºC to 50ºC |
| Storage Temperature | -15ºC to 60ºC |
| *Product specifications are subject to change without further notice | |
