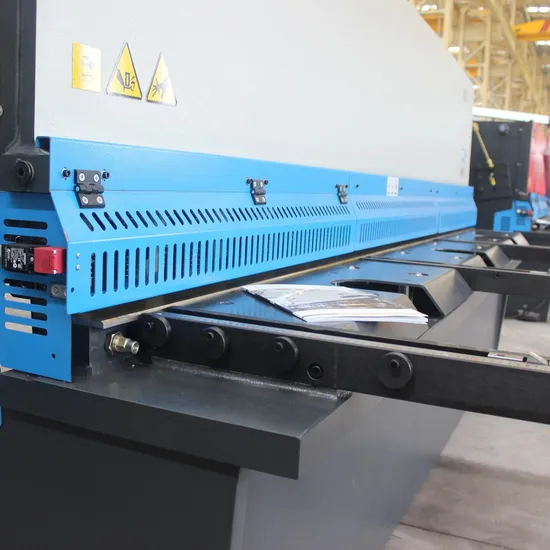

Metal Plate Shearing Machine E21s System Cutting Shears Hydraulic Sheet Metal Steel
| US$4,400.00-7,400.00 | 1 Piece (MOQ) |
Basic Info.
Certification
ISO 9001:2000
Condition
New
Warranty
2 Years
Transport Package
Cover with Plastic Film
Trademark
Hycules
Origin
China
HS Code
8462299000
Production Capacity
50 Set/Month
Product Description
Product Feature
Standard Equipment
Optional Equipment
Details ImagesSwing Beam Shears Back Gauge System:
One of the most important factors for bending capacity is the design of the back gauge and stability. Quality cutting is possible with perfect product stability and precision back gauge.
The high-speed ballscrew back gauge system movement is also supported by linear guides, which helps the back gauge achieve long life and greater sensitivity and strengthens against any collisions.
| Backgauge use Ball Scrwe | Working Table | Back safety net |
| Electrics - France | Montor | Back safety net |
Product Parameters
| Type | Max Thickness (mm) <450N/mm2 | Max Thickness (mm) <700N/mm2 | Cutting Length (mm) | Throat Depth (mm) | Shearing Angle (°) | Blade Length (mm) | Shearing Speed (Cuts/min) | Back Gauge Specification Travel (mm) | Back Gauge Specification Speed (mm/sec) | Motor Power (kw) | Oil Tank Capacity (L) | Weight (kg) | L*W*H (mm) |
| 4x2500 | 4 | 2.5 | 2500 | 100 | 1°30' | 2600 | 10~12 | 600 | 180 | 5.5 | 220 | 3800 | 3040*1610*1620 |
| 4x3200 | 4 | 2.5 | 3200 | 100 | 1°30' | 3300 | 10~12 | 600 | 180 | 5.5 | 290 | 5000 | 3840*1610*1620 |
| 4x4000 | 4 | 2.5 | 4000 | 100 | 1°30' | 4100 | 8~10 | 600 | 180 | 5.5 | 290 | 6500 | 4600*1700*1700 |
| 4x6000 | 4 | 2.5 | 6000 | 100 | 1°30' | 6100 | 5~7 | 600 | 180 | 11 | 380 | 11000 | 6460*2100*3200 |
| 6x2500 | 6 | 4 | 2500 | 145 | 1°30' | 2600 | 10~12 | 600 | 180 | 7.5 | 220 | 5000 | 3040*1610*1620 |
| 6x3200 | 6 | 4 | 3200 | 145 | 1°30' | 3300 | 9~11 | 600 | 180 | 7.5 | 290 | 6000 | 3840*1610*1620 |
| 6x4000 | 6 | 4 | 4000 | 145 | 1°30' | 4100 | 8~10 | 600 | 180 | 7.5 | 290 | 8000 | 4620*1750*1700 |
| 6x5000 | 6 | 4 | 5000 | 145 | 1°30' | 5100 | 6~8 | 600 | 180 | 7.5 | 380 | 10500 | 5400*1750*1700 |
| 6x6000 | 6 | 4 | 6000 | 145 | 1°30' | 6100 | 5~7 | 600 | 180 | 11 | 380 | 16500 | 6480*2100*2300 |
| 8x2500 | 8 | 5 | 2500 | 300 | 1°30' | 2600 | 10~12 | 600 | 180 | 7.5 | 220 | 6000 | 3040*1700*1700 |
| 8x3200 | 8 | 5 | 3200 | 300 | 1°30' | 3300 | 8~10 | 600 | 180 | 7.5 | 290 | 7200 | 3860*1700*1700 |
| 8x4000 | 8 | 5 | 4000 | 300 | 1°30' | 4100 | 8~10 | 600 | 180 | 7.5 | 290 | 8800 | 4640*1700*1700 |
| 8x5000 | 8 | 5 | 5000 | 300 | 1°30' | 5100 | 8~10 | 600 | 180 | 7.5 | 380 | 11500 | 5400*2400*2000 |
| 8x6000 | 8 | 5 | 6000 | 300 | 1°30' | 6100 | 8~10 | 600 | 180 | 11 | 380 | 18000 | 6480*2100*2350 |
| 10x2500 | 10 | 6.5 | 2500 | 300 | 1°30' | 2600 | 9~11 | 600 | 180 | 11 | 320 | 7300 | 3040*1700*1700 |
| 10x3200 | 10 | 6.5 | 3200 | 300 | 1°30' | 3300 | 9~11 | 600 | 180 | 11 | 420 | 8000 | 3860*1700*1700 |
| 10x4000 | 10 | 6.5 | 4000 | 300 | 1°30' | 4100 | 8~10 | 600 | 180 | 11 | 420 | 12000 | 4650*2100*2000 |
| 10x6000 | 10 | 6.5 | 6000 | 300 | 2° | 6100 | 5~7 | 600 | 180 | 15 | 520 | 24000 | 6500*2100*2300 |
| 12x2500 | 12 | 8 | 2500 | 300 | 2° | 2600 | 9~11 | 600 | 180 | 18.5 | 360 | 9000 | 3140*2150*2000 |
| 12x3200 | 12 | 8 | 3200 | 300 | 2° | 3300 | 9~11 | 600 | 180 | 18.5 | 500 | 10800 | 3880*2150*2000 |
| 12x4000 | 12 | 8 | 4000 | 300 | 2° | 4100 | 8~10 | 600 | 180 | 18.5 | 500 | 13000 | 4680*2150*2000 |
| 12x5000 | 12 | 8 | 5000 | 300 | 2° | 5100 | 6~8 | 600 | 180 | 18.5 | 520 | 16000 | 5900*2150*2000 |
| 12x6000 | 12 | 8 | 6000 | 300 | 2° | 6100 | 5~7 | 600 | 180 | 18.5 | 600 | 29000 | 6900*2600*2700 |
| 12x8000 | 12 | 8 | 8000 | 300 | 2° | 8100 | 5~7 | 600 | 180 | 18.5 | 620 | 46500 | 9000*3500*3500 |
| 16x2500 | 16 | 10.5 | 2500 | 320 | 2°30' | 2600 | 9~11 | 600 | 180 | 18.5 | 360 | 11000 | 3140*2150*2000 |
| 16x3200 | 16 | 10.5 | 3200 | 320 | 2°30' | 3300 | 8~10 | 600 | 180 | 18.5 | 500 | 13000 | 3880*2150*2000 |
| 16x4000 | 16 | 10.5 | 4000 | 320 | 2°30' | 4100 | 8~10 | 600 | 180 | 18.5 | 500 | 16300 | 4650*2150*2200 |
| 16x5000 | 16 | 10.5 | 5000 | 320 | 2°30' | 5100 | 6~8 | 800 | 180 | 18.5 | 520 | 20000 | 5900*2600*2700 |
| 16x6000 | 16 | 10.5 | 6000 | 320 | 2°30' | 6100 | 5~7 | 800 | 180 | 22 | 550 | 36000 | 6900*2700*2700 |
| 20x2500 | 20 | 13 | 2500 | 320 | 3° | 2600 | 8~10 | 800 | 180 | 22 | 540 | 15500 | 3440*2300*2500 |
| 20x3200 | 20 | 13 | 3200 | 320 | 3° | 3300 | 8~10 | 800 | 180 | 22 | 800 | 18000 | 4150*2350*2700 |
| 20x4000 | 20 | 13 | 4000 | 320 | 3° | 4100 | 5~7 | 1000 | 180 | 22 | 800 | 21000 | 4850*2350*2700 |
| 25x2500 | 25 | 16.5 | 2500 | 320 | 3° | 2600 | 8~10 | 1000 | 180 | 37 | 800 | 19000 | 3200*2700*2900 |
| 25x3200 | 25 | 16.5 | 3200 | 320 | 3° | 3300 | 5~7 | 1000 | 180 | 37 | 800 | 23000 | 4200*2700*2900 |
| 25x4000 | 25 | 16.5 | 4000 | 320 | 3° | 4100 | 5~7 | 1000 | 180 | 37 | 800 | 27000 | 3850*2700*2900 |
| 30x2500 | 30 | 20 | 2500 | 320 | 3° | 2600 | 5~7 | 1000 | 180 | 37 | 800 | 23500 | 3300*2900*2900 |
| 30x3200 | 30 | 20 | 3200 | 320 | 3° | 3300 | 5~7 | 1000 | 180 | 37 | 800 | 27500 | 4200*2900*2900 |
