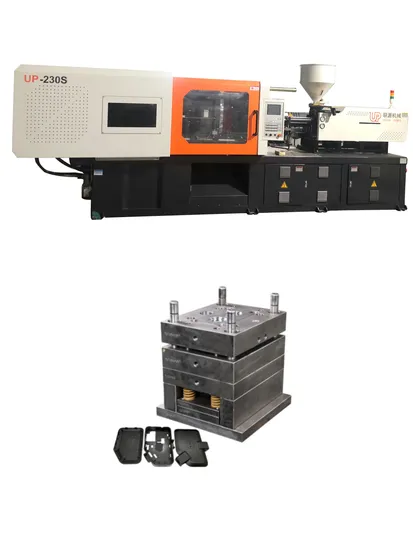

Innovative Auto Parts Injection Molding Equipment
| US$23,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-230T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
6.3t
Tank Volume
350L
System Pressure
16MPa
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Trademark
UP
Origin
China
HS Code
84771090
Production Capacity
500sets Per Year
Product Description
China Servo Injection Molding Machine
Introducing the advanced features of our injection molding machine from Ningbo Union Power Machinery Co., Ltd:
Modulus of Capacitance: Includes position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the guide pillar.
Nozzle Parameters: Spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture of the nozzle.
Code Mold Parameters: Features code mold hole and slot size for precision molding.
Ejection Mechanism: Details the ejection point position, ejector rod diameter, force, and stroke for efficient mold ejection.
Mold Opening Stroke: Specifies the opening stroke and maximum distance for seamless operation.
Experience high-quality performance and precision with our standard injection molding machine. Upgrade your production capabilities with our reliable equipment.
| Technical Parameters | Model UP-230T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 50 | 55 | 60 |
| Shot Volume (cm3) | 461 | 558 | 664 |
| Injection weight (g) | 415 | 502 | 598 |
| injection pressure (Mpa) | 169 | 142 | 121 |
| Screw speed (rmp) | 155 | ||
| Clamping Unit | |||
| Clamping force (KN) | 2300 | ||
| Open stroke (mm) | 475 | ||
| Max Mold height (mm) | 550 | ||
| Min Mold height (mm) | 220 | ||
| Space between tie bars(mm) | 530*530 | ||
| Ejector force (KN) | 70 | ||
| Ejector stroke (mm) | 135 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 22(21.2) | ||
| Heating power (KW) | 14.2 | ||
| Machine dimension (M) | 5.8*1.55*2.15 | ||
| Machine weight (T) | 6.3 | ||
| Oiltank cubage (L) | 350 | ||
