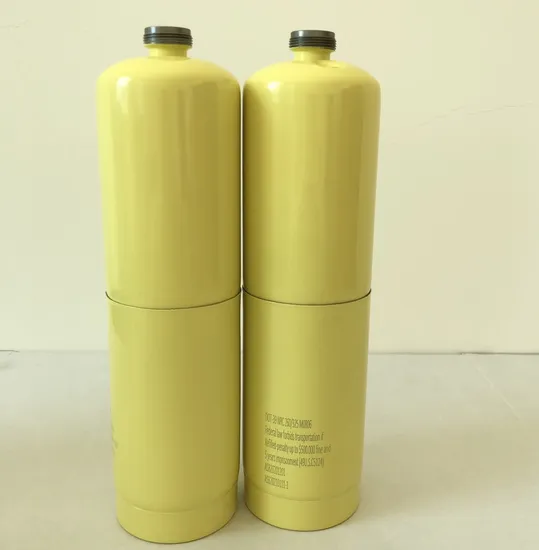

DOT Standard Empty R134A Gas Cylinder for Cryogen Lasers

Product Description

Cylinders standard: EN12205 for EU countries DOT-39 for USA, Japan, KGS for South Korea GB for East Europe, South America, Latin America, Middle East, Africa and most countries in Asia. Water Capacity : 22.4L/13.4L/7.1L/1L Service Pressure: 1.8MPa Test Pressure: 2.3MPa
Company Profile Establish in 2006, we're an enterprise specializing in the production of pressure vessel. With an area of 40209.4 square meters workshop and office building ;has five senior engineers, 39 technical personnel engineers. And strictly according to the ISO9000 authentication procedure production, the year productivity surpasses 5,000,000 steel cylinders, the quality qualified rate 100%. Because of having these advanced equipments, advanced talented persons and management pattern, we pursues in the specialized aspect strives for perfection, devotes in the customer is satisfied, and makes every effort remarkably.
We produce high quality various sizes of disposable steel cylinders(1L/7L/13L/22L), and has more then 15years OEM &ODM services. These cylinders are used to fill with permanent gases, liquefied petroleum gas or compressed natural gas to serve a wide application in chemical industry, metallurgical industry, mechanical industry, petroleum industries, electronic industry, building industry and in the fields of fire fighting, energy, food process, household, medical treatment, cryogenic soldering, mountaineering, diving, mining,scientific research & etc.
Presently our supplies have the approvals of DOT, CE CCS, BV, ABS,KGS. These cylinders also can be designed and processed in strict accordance with the standards of BS, JIS, DIN, EN, KS, ISO, GB(China) or the off-standard from the consumer. Specification These disposable tanks are designed for use with Little Torch propane and oxygen systems for disposable tanks.1. 1l mapp and propane gas cylinder for welding,deicing or heating.
2. reach 1300ºC in 25 seconds.
3. standard: EN12205:2001
4. to be used with a torch to burn mapp,propane or mixed gas for welding, deicing and heating
5. MAP Pro gas cylinder for the professional actual burning temperature: approach to 3600°F Scientific blend proportion and good flame to guarantee good welding result and shorten working time. Gas valve has CGA 600 connection according to EN 12205.

Mapp gas cylinder
diameter	74mm
height	273mm
working pressure	12bar
test pressure	28bar
color	optional
standard	EN12205
thread	CGA600
certificate	TPED/ DOT-39
volume	0.75L
material	ST12

Color optional We can paint the cylinder according to your requirement(color pantone number).
Our original color is yellow, white and orange and have them at stock.
Other color requirement, the order quantity must be over 5000units.
User manual for the 1 liter disposable and non-refillable welded steel cylinder *Product Overview:
The product is a 1 liter disposable and non-refillable welded steel cylinder for storing and or transporting propane gas.
An applicable welding torch or valve must be used as supporting equipment when the gas is to be consumed or transferred.
The cylinder is made up of main body welded by top and bottom caps, base, valve seat,safety valve and valve core.
The welding process for all the Connected parts is ring brazing, it is safe and secured.
The quality of the cylinder is in line with ISO1118-1999 and GB15380-2001 standard.
*Instructions for use:
1. Filling method:
2. connecting the vacuum pump with the valve seat and evacuating any air inside the cylinder, making it airless.
3. buckling the charger from the filling equipment with the valve seat and filling propane gas by high pressure.
4. Safety use for filled cylinder:
5. tightening the torch/valve with the valve seat of the cylinder, the pin of the torch/valve will open the valve core of the cylinder and meanwhile the cylinder will supply propane gas automatically.
6. remove the torch/valve after the use or when you moving the filled cylinder.
*precautions:
1.read this user manual before use, operating in accordance with to this manual.
2. the filled cylinder must be stored in well-ventilated and dry place when not in use.
3. the filled cylinder must keep away from to the fire, heat and sunlight.
4. random adjustment to the safety valve is not allowed.
5. throwing is prohibited when the cylinder is in use or in transportation. The thread of the valve seat must be prevented from any bruising and clashing.
RFQ
Q1. Can I get a free sample from you?
A:Of cause.You can buy a FREE sample from us with freight collect.

Q2:. What is the MOQ?
A:1L canister:11340PCS/20'FCL w/ pallet
16000PCS/20'FCL w/o pallet
other small volume cylinder 3000pcs, 5,000pcs is OK for empty cylinder.

Q3: Why the price is different from the price on the web?
A:All the price on our web are not renewed in time.
The price based on your purchase quantity.The more purchase quantity the better of price.
Q4:. Does your products can be customized?
A:Yes,carton and tank body printing based on your design,and free charge.
