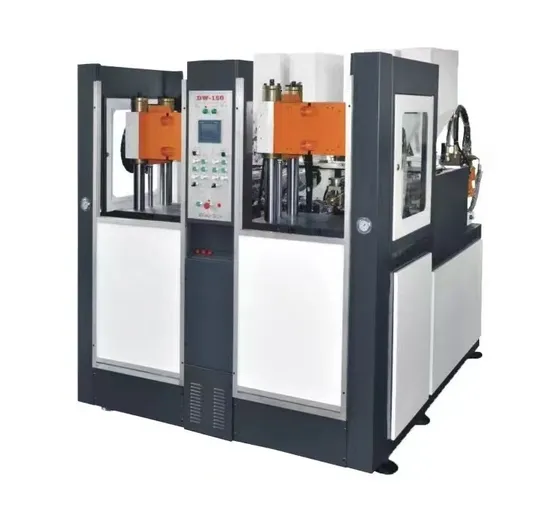

Automatic 2 Station PVC/Tr/TPU/TPR/Rubber Shoe Soles Making Machine
| US$66,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
DW150
Condition
New
Certification
CE
Power Supply
Electric
Applicable Material
Rubber
Function
Making Sole
Moulding Holder
2 Station
Screw Diameter
55*4 mm
Mould Clamping Force
150 N
Max Mould Size
480*550 mm
Mould Thickness
120 mm
Transport Package
Container
Specification
2200*3700*2600 mm
Trademark
DASHUN
Origin
Wenzhou
HS Code
8453200000
Production Capacity
10 Set/Month
Product Description
1.Suitable for the productionofthermoplastic materials:TR.TPR.PVC.TPU.2.Can making single or double color products
3.Easy operation.mouldcanrotation0-90-180
4.Fast mould change on each station without having to stopthe machine.
5.Automatic adiustment to the variours mould heights mould size:120-200mm.
6.High configure use touch screen -plc control.all part is use International brand andinternational standard high.
7.High quality products.use high pressure and high holding pressure with high precision parts assure making highquality products.
| moulding clamping force | 150 N |
| mould holder | 2 stations |
| screw diameter | 55*4 mm |
| injector volume | 750 cc |
| max mould size | 480*550 mm |
| mould thickness | 120 mm |
| power | heating 30kw , motor 36kw |
| oil | 600L |
