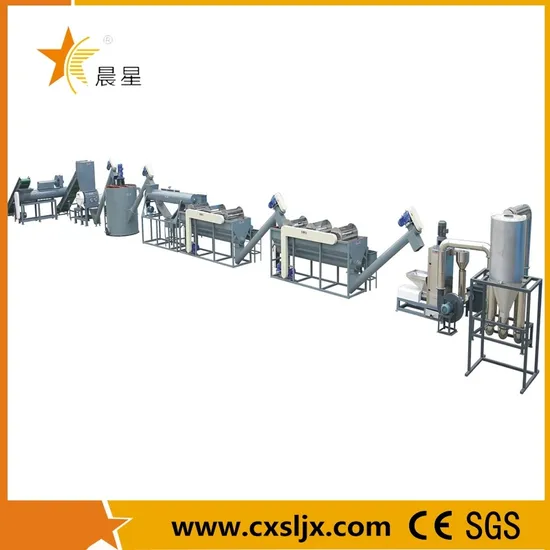

Waste Pet Bottle Flakes Crushing Washing Drying Recycling/Production Line

Product Description

Product Description
Waste Pet Bottle Flakes Crushing Washing Recycling Production Line
Product Parameters
1.1.Material and final products:

raw material	PET bottles and flakes
Capacity	500kg/h
final products describe	1.Max. moisture content:3-5% 2.Packing density:0.3G/CM3 3.Finished product size:18-22mm

1.2Workshop:

workshop	size(M*M*M): 50(L)×15(W)×5(H); Crane: equipment displacement (customers)
Power	380V/50HZ,3Phases
Wires and cables (customer supplied)	Cabinet-connection to the power supply, all devices and connections between the electrical cabinets
Water supply (customer supplied)	Equipment supply

1.3 Energy consumption

Total installed power	146KW (Actual consumption for the total power 70%-80%)
Water flow	10-12t(can be recycling use) pressure: 0.6Mpa
Supply heat	Temp.: 170 ºC, Pressure output flow: 0.7Mpa
People	3-6person

1.4 Main business item:

Project	PET bottles recycling line
Terms of payment	30% T/T as the prepay, the rest should be paid before delivery time.
Delivery time	About 50-60 working days after receiving the deposit
Warranty	1year

III.Machinery list:

No.	Production	Quantity
1	Belt conveyor	1set
2	label remover / label stripper	1 set
3	Belt conveyor	1 set
4	Crusher	1set
5	Screw loader	1set
6	Steamer / hot washer	1set
7	Screw loader	1set
8	Friction washing	1set
9	Poaching tank / floating washing tank	1set
10	Screw loader	1set
11	Poaching tank / floating washing tank	1set
12	Screw loader	1set
13	Dewatering machine	1set
14	Pipe drying system and silo	1set
15	Electric appliance	1set

Remarks: all information above is only for refererence; please gather the exact data by contacting us. Detailed Photos
1.Conveyor: convey the PET bottles etc to next machine
2.Label remover: to remove the labels from the PET bottles
3. conveyor and crusher: convey the bottles to crusher, make the bottles into chips/flakes

4. screw loader and hot washer/steamer: feed the flakes by screw loader into hot washer tank for heating and washing
5. screw loader and Friction washing: feed the flakes ( which is out from the hot washer) to friction washer for friction and wahing.
6. floating washer tanks and screw loaders: feed the flakes (out from the friction washer) to the floating tank for washing and remove the dust, etc. Inject a large amount of clean water to rinse the flakes material and separate particles and impurities such as sand, etc. After that feed the flakes by screw to next floating washer tank to repeat the process again.
7. dewatering machine, pipe drying system and silo : the dewatering machine is used to seperate the water and flakes. pipe drying system and silo is used to dry the flakes with heating wind and blow it to the final silo for collection.
