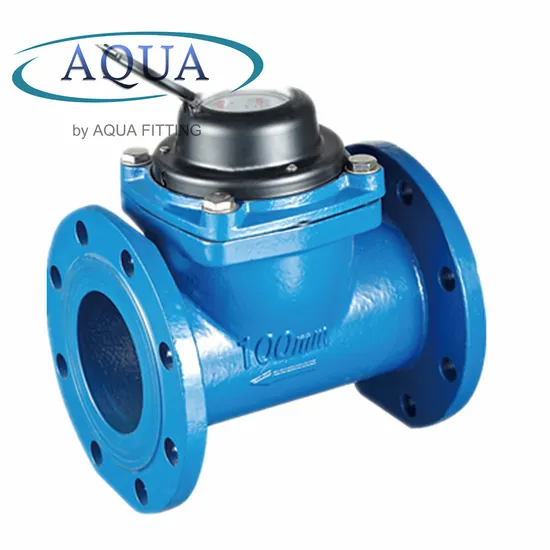

Cast Iron Body Bulk Water Meters with ISO4064 Dry Type

Product Description

ADVANTAGES
- Multi-jet, dry type register with magnetic transmission. - Hermetically sealed register. - Protected against external magnetic interference and condensation. - Optimum accuracy with very low starting flow rate. - Long-life, low maintenance operation. - Performance well at all times and in horizontal position. - Dimensions as per ISO4064. - Copper alloy housing and durable tamper proof construction. - Ability of the calibration thanks to external sink regulation. - The water meter in special edition is equipped with pulse or AMR emitter to connect with AMR system.
Bulk flowmeter low cost plastic water flow meter types 1. Multi-jet Vane Wheel Water Meter

Size :	15mm(1/2"), 20mm(3/4"), 25mm(1"), 32mm(1-1/4"), 40mm(2-1/2"), 50mm(2")
Material :	Brass & Plastic & Iron
Type :	Dry-dial , Semi-dry , Wet-dial
Standard :	Class B(R=80 or 100) , Class C(R=160 or 200)
Unit	Cubic meter , US Gallon
PN	10bar or 16bar
Connection :	Screw / Thread end
Temperature	0.1ºC~40ºC for cold water meter ; 0.1ºC~90ºC for hot water meter

2.Removable Element Woltman Water Meter

Size :	50mm(2"), 65mm(2-1/2"), 80mm(3"), 100(4"), 125(5"), 150(6"), 200(8"), 250(10")~600(24")
Material :	Cast Iron & Ductile Iron & Stainless Steel
Connection :	Flange end
Standard :	Class A , Class B
Applications :	Industrial & Agriculture

3. Volumetric Rotary Piston Liquid Sealed Class C Water Meter

Size :	15mm - 40mm (1/2 inch ~ 1-1/2 inch)
Material :	Brass & Plastic
Connection :	Screw / Thread end

4.Single-jet Vane Wheel Water Meter

Size :	15mm - 20mm (1/2 inch ~ 3/4 inch)
Material :	Brass & Plastic
Connection :	Screw / Thread end

5.Prepaid Water Meter

Size :	15mm - 20mm (1/2 inch ~ 1 inch)
Material :	Brass & Plastic
Connection :	Screw / Thread end

FAQ
1.Q: Are you manufacture or trade company? A: We are a manufacturer factory and we also have our own exporting license. 2.Q: Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
3.Q: Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
4.Q: Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you. 5.Q: Can I request to change the form of packaging and transportation?
A: Sure, we're glad to fulfill your requirement. Yet please understand that extra costs may occur if the form of packaging and transportation are changed.
6.Q: Why trust in us ?
More than 20 years in this industry . It makes us professional .Good credit in this market. All of our machines are the assurance of our responsibility.
7. More questions please feel free to contact us.
