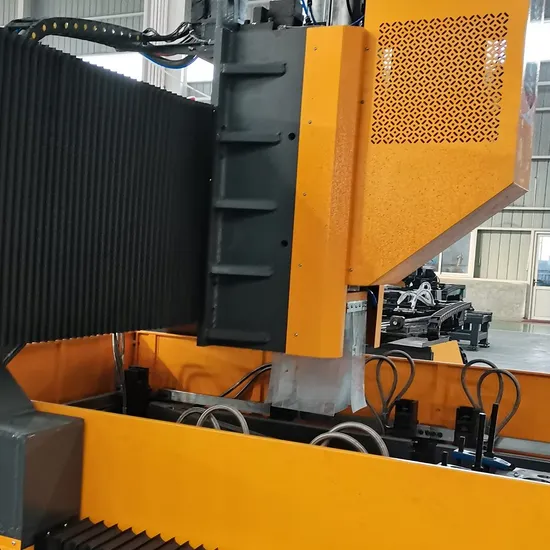

Competitive Price Psd Series High Speed Gantry Moveable Plate Drilling Machine

Product Description

Competitive Price PSD Series High Speed Gantry Moveable Plate Drilling Machine
Product Description
PSD Series is a gantry moving CNC drilling and milling machine, mainly used for drilling, shaving, chamfering, grooves inside holes and milling of flanges, heat exchangers, tubeplates, rotary supports and other workpieces. It can be used for internal cold high-speed drilling with hard alloy drill bit or external cold drilling with high speed steel twist drill bit. Drilling depth of 10D (10x diameter) can be achieved with special crown drill bit. The machining process is NC and easy to operate. It can realize automatic, high precision and many kinds of mass production.
Product Parameters

Model		PSD2016	PSD2020	PSD3016	PSD4030
Workpiece size	LengthxWidth(mm)	2000*1600	2000*2000	3000*1600	4000*3000
	Max stack Thickness(mm)	200
Sliding CNC power head	Spindle taper hole	BT50
	Drilling diameter (mm)	Ф50 (Optional Ф63)
	Tapping diameter (mm)	M30
	Spindle speed (rpm)	30-3000(frequency conversion stepless)
	Spindle motor power (KW)	11/15/22/25
	Torque (n<600r/min)	190/240/360Nm
	Spindle surface to worktable distance (mm)	230-630
Longitudinal movement of gantry(Xaxis)	Maximum stroke (mm)	PSD2016:2000 PSD2020:2000 PSD3016:3000 PSD4030:4000
	Servo motor power (KW)	2*2
	Maximum moving speed (m/min)	10
Power head vertical movement (Zaxis)	Maximum moving speed(m/min)	8
	Servo motor power (KW)	2
	Maximum stroke (mm)	400

Product Application
Suitable specially used for tube sheet, flanges , boiler sheet , heating exchanger , solar enegy , steel structure
Structure:
1. Adopt Taiwan BT50 high-rigidity mid-spray spindle.
2.Four processing areas, 12 sets of hydraulic automatic clamps. Enables quick positioning and tightening.
Machine detailed
Machine Bed and Worktable are whole steel plate welding, and the stress is removed by two tempering heat treatments. In order to eliminate the resonance during drilling and prolong the service life of the alloy bit, the bed body and the working table are independently adopted.

The CNC system of the machine adopts a full set of Siemens 808D bus version control system, /KND 1000 system and is equipped with RS232 interface and LCD LCD screen, drilling coordinates can realize CAD/CAM direct conversion, convenient programming, storage, display and communication, the operation interface has man-machine dialogue, error compensation, automatic alarm and other functions.
The CNC operating system is installed on the right side of the gantry, which can be moved longitudinally with the gantry for easy operation.
Equipped with plate chain type automatic chip discharging device and chip collecting car, used for automatic collection of iron chips. The cooling system is equipped with high pressure internal cooling pump and low pressure external cooling pump respectively, which can be used for internal or external cooling of the cutting tool, and the coolant is forced to circulate.
