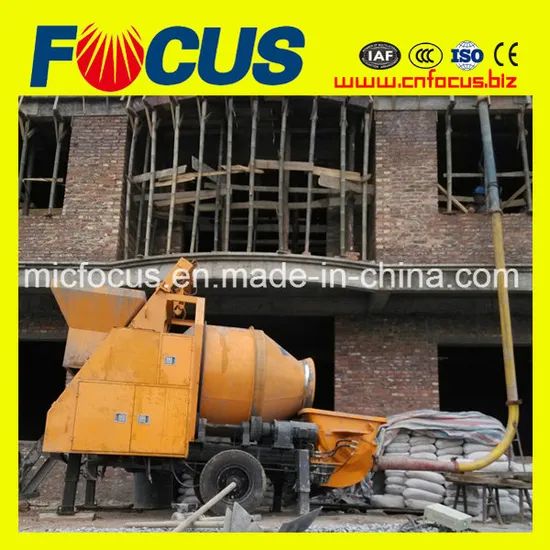

Jbs40 10-40m3/H Trailer Diesel Concrete Mixer Pump
| US$12,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JBS40
Productivity
15-30m3/H
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Power
76kw
Theoretic Output
15-30m³/H
Engine
Diesel
Theoretic Outlet Pressure
10MPa
Theoretic Delivery Height
150m
Theoretic Delivery Distance
600m
Max Pressure
10MPa
Hopper Volume
350L
Distribution Valve Type
S Pipe Valve
Concrete Cylinder Spec.
160X1000
Transport Package
20gp for Concrete Mixing Pump
Specification
BV, ISO certification
Trademark
FOCUS
Origin
Zhengzhou, China
HS Code
84134000
Production Capacity
60sets Per Month
Product Description
JBS40 Diesel concrete pump with mixer for sale1. Application of JBS40 diesel concrete pump with mixer for sale:
Group building, bridges, and the small construction projects, 4-6 floors building.
2. Main Features of JBS40 diesel concrete pump with mixer for sale:
1) New combination of concrete pump and concrete mixer.
2) Diesel engine, can be used in rural area. Easy to move and operate, very convenient.
3)The pump construction operation system used in all automated, all material mixing, high pressure pumping.
Video:https://micfocus.en.made-in-china.com
Mixing system and Pumping system of JBS40 diesel concrete pump with mixer
Mixing system:
Double motors for mixer mixing with features of quick and homogeneous mixing.
Grinding wheels for mixing drum rotation, stable and reliable.
Vibrating device for aggregate complete discharging.
Pumping system:
Fully hydraulic pumping system with double concrete cylinders and double oil cylinders, stable and reliable.
Hydraulic parts are famous brands from home and aboard with high and reliable quality.
| Model Parameter | JBS30-10-37 | JBS30-10-66R | JBS40-10-45 | JBS40-10-82R | JBS40-10-84R | JBS40B-JS500 | JBS40B-JS750 | JBS40B-JS500-129R | JBS40B-JS750-129R |
| Engine power | Electric, 37kw | Weifang diesel engine, 66kw | Electric, 45kw | WEICHAI diesel engine, 84kw | Weifang diesel engine, 84kw | Electric, 18.5+5.5kw | Electric, 30+7.5kw | WEICHAI Diesel engine, 129kw | WEICHAI Diesel engine, 129kw |
| Max. Pumping capacity | 30m3/h | 30m3/h | 40m3/h | 40m3/h | 40m3/h | 40m3/h | 40m3/h | 40m3/h | 40m3/h |
| Mixing Mixer | JZM450 | JZM450 | JZM450 | JZM450 | JZM450 | JS500 | JS750 | JS500 | JS750 |
| Max. Mixing capacity | 18m3/h | 18m3/h | 18m3/h | 18m3/h | 18m3/h | 25m3/h | 35m3/h | 25m3/h | 35m3/h |
| Max. Aggregate diameter(mm) | 15/20mm | 15/20mm | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Pumping Distance (Vertical/Horizontal) | 80m/400m | 80m/400m | 100m/500m | 120m/600m | 120m/600m | 120m/600m | 120m/600m | 120m/600m | 120m/600m |
