Zmde High Precision CNC Steel Plate Beam Drilling Machine

Product Description

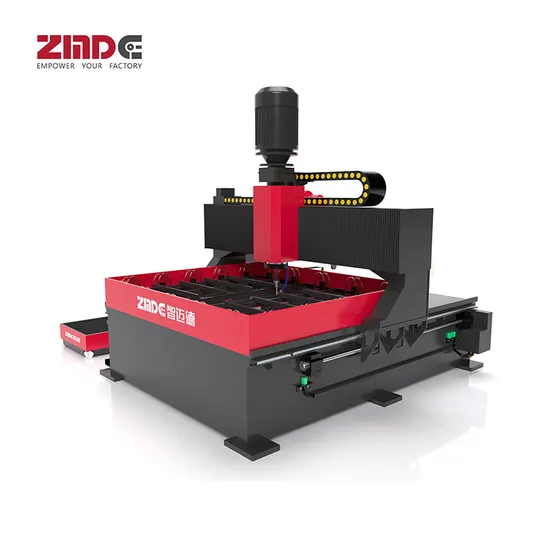

ZMDE High Precision CNC Steel Plate Drilling Machine Beam Drilling Machine

>Cost-effective equipment <
1. The equipment is constructed with robust materials, ensuring a low failure rate and minimizing maintenance costs. Key components such as ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from renowned industry brands.
2. The CRT display features automatic chip removal, significantly reducing manual cleaning time and associated costs.
3. The machine boasts high precision, ensuring a high qualification rate for workpieces and effectively lowering consumable costs.
>Simple operation, High productivity <
1. The user-friendly human-machine interface is clear and visual, allowing for the easy generation of automatic machining programs.
2. Controlled by both CNC and PLC systems, the machine guarantees accurate positioning, enhancing operational accuracy.
3. Workpieces are secured using hydraulic clamps, and operators can control the process via a foot switch, making the operation convenient and labor-saving.
4. The table features 12 fast hydraulic clamps that can simultaneously secure four groups of workpieces, improving efficiency.
5. Small workpieces can be clamped at the four corners of the table, significantly reducing production preparation time and boosting productivity.
6. Clamping small workpieces at the table's corners markedly shortens the production preparation period, enhancing production efficiency.
> Guaranteed quality, wide range of applications <
1. Key components such as the gantry, column, and table are made of solid materials, with the main machine weighing up to 6300kg.
2. The machine is versatile, serving as essential equipment for various plate processing industries.
3. It supports a wide range of drilling diameters, from 12mm to 50mm, accommodating various needs.
> Suitable for various production scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Capable of processing small batches of workpieces of various shapes-rectangular, round flange, polygonal-and can handle two or four different plate specifications simultaneously.
3. Designed for the production of multiple layers of thin sheets in stacks, with a maximum stack height of 100mm for drilled holes.
4. Utilizes upper computer software for automatic processing, capable of drilling through holes, blind holes, step holes, and chamfered hole ends.
> Production process automation <
1. Integrated line board system ensures a high degree of automation with automatic positioning based on the drilling program.
2. Automatically adjusts the optimal feed rate for different hole diameters, enhancing efficiency.
3. Capable of automatic and continuous processing of large hole diameters, completing one-time processing and molding.
4. Features an automatic chip removal function, further streamlining the production process.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
