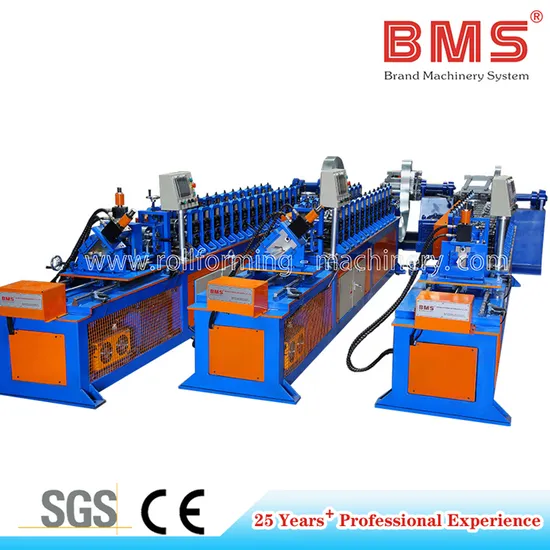

BMS PLC Control System Cu Stud and Track Roll Forming Machine

Product Description

BMS PLC Control System Cu Stud and Track Roll Forming Machine
Product Description
High Speed CU Stud And Track Punching+ Cutting Roll Forming Machine
Material
Effective width:About 72 mm
Material Thickness:0.3-0.6mm
Applicable material:Galvanized Steel(GI)With yield strength G235-390Mpa
Work Follow
Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Not Stop Cutting And Punching Device→ Exit Rack
Machine Components
1)Manual Decoiler:One Set
Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 500mm,coil ID range ф460-520mm
Capacity:Max 2 Tons
2)Feeding Guide Device The feeding guide device at the main entrance of the machine during work,Raw materials on both sides of the plate the enter into the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently

3)Rolling Forming System
Forming mold: Cr12MoV molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner
Hole and the end face. The precision machining roller surface with CNC lathe
Shafts material:Cr12 steel,CNC lathes,Heat Treatment,hard Chrome Coated
With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Main motor and 14 reducers combination driving,about 14-step to form
Main Motor =5.5KW,Frequency speed control
4)Hydraulic Cutting And Punching Device Cutter stype:Not stop cutting and punching
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Hydraulic Motor:4KW
Servo motor power:1.5 KW
5)Operation Panel
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc

PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)/Schneider(French brand)
Inverter	Siemens (German brand)/Schneider(French brand)
7-Inch Color Touch Screen	Siemens (German brand)/Schneider(French brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)/Schneider(French brand)
Air Switch	LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V

After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade

Minimum order quantity (MOQ)	1 Set
Delivery time	about 45 workdays
Port of loading	port of Xiamen
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc
