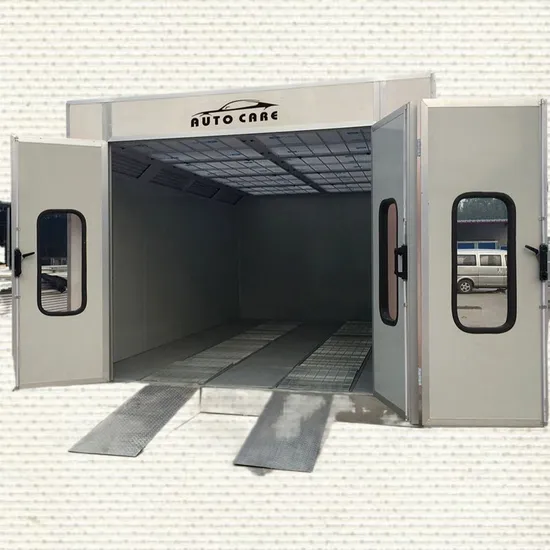

Best Quality Portable Movable Container Spray Booth Car Paint Booth AC-6900
| US$5,500.00-7,500.00 | 1 Piece (MOQ) |
Basic Info.
Type
Spray Booth
Substrate
Steel
Brand
Autocare
Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Installation
CD and Drawing
Lighting System
LED
Usage
Car Painting and Baking
Ceiling Light
40PCS
Side Light
32PCS
Filter
Primier, Floor and Ceiling Three Filters
Inner Size
L*W*H=8000*4000*3000mm
Outside Size
L*W*H=8100*5250*3700mm
Color
Red, Blue, White, Orange etc..
Transport Package
Standard Exporting Package
Specification
22cbm
Trademark
AUTOCARE
Origin
China
HS Code
8419899090
Production Capacity
500 Sets/Year
Product Description
spray bake paint booth Automotive Spray Booth/Car Paint Spray Room CE approve Product Parameters| Detailed Parameters | ||||
| Dimensions | Length (mm) | Width (mm) | Height (mm) | |
| Booth Outside | 7,000 | 5,200 | 3,600 | |
| Booth Inside | 6,900 | 3,900 | 2,750 | |
| Entrance Door | 3 folds,size is 3,000×2,700mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock | |||
| Personnel Door | size is 800×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock | |||
| Plenum Chamber | 700mm high, all spare parts of plenum are made of galvanised bended steel and treated by white powder for long using life. | |||
| Walls Panel | 75mm thick and 1,000mm wide,insulation is EPS and covered by 0.476mm thick of color steel on both side.Tongue and groove interlock structure, two sides covered by steel. | |||
| Basement System | Grid Plates (Galvanized)* 2rows, made of 30x4mm flat bar and 10mm twisted steel,surface galvanised treatment,equipped with floor filter supporting frame. loading weight is 600KG/wheel | |||
| Diamond Plates (Powder Coated or Galvanized)* 3rows | ||||
| 2 ramps,each size 800x2,000mm(WxL) | ||||
| Heating System | 10 units of Infrared Lamp, 3pc/unit, 1kw/pc, total power: 30pcs; Each set of infrared lamp have protected net, and lamp box; The electric heating exchange rate reaches 95%. Infared heat radiation have a feature of high penetration,efficient,no noise,pollution free etc. Max temperature reaches 80°C. | |||
| 4. Filter System | Primary Filter* 1set, filtering rate > 83% G3 Grade(EN779),type is C16-300 ; Fibre glass filter, G3 Grade(EU-3) | |||
| Air-Intake Filter* 1set, filtering rate > 97% Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5) | ||||
| Air-Exhaust Filter(paint-stop filter)* 1set, filtering rate > 70% Fibre glass filter, G2 Grade(EU-3) | ||||
| 5. Air System | Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each | |||
| Air-Exhaust Fan* 1unit, Centrifugal Fans with 4 KW motor | ||||
| Belimo NMU230 20NM electric damper | ||||
| Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit | ||||
| 6. Illumination | Ceiling Lights * 32pcs, 20kw LED lamp, with Light Fixtures, anti-explosion design | |||
| Side Lights * 32pcs,20kw LED lamp, with Light Fixtures, anti-explosion design | ||||
| Illumination ≥800LUX | ||||
| 7. Control Panel | *1unit,Button type control box, with main switch, and set with normal temperature spraying, constant temperature spraying, baking switch, lighting switch, temperature time setting, emergency stop, failure alarm, time accumulator etc. | |||
| ** Included | All Hardware, Fasteners, and Sealants | |||
