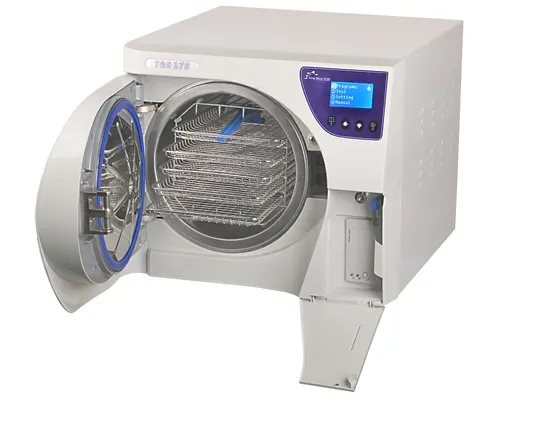

B+Table Top Steam Automatic Sterilizer Autoclave (14L, 17L, 23L)

Product Description

1. According with EN13060
2. Pass CE, ISO9001, ISO13485
3. Multi-language
4. Full automatic operations
5. Usb connector or printer
6. New type of separte steam gentator
7. Multi-language convient for the dentist.
8. The temperature accurate to the first decimal place, the pressure accurate to the second decimal place.
9. Have very detail print. Can make the record of monitoring temperature and pressure per 6 seconds.
10. Automaticly door lock system
11. LCD display, 10programs easy to choose
12. Automaticlly feeding water and excess water and air to be drained away.
13. Show the reason of failure on LCD directly
14. Connector for USB and outprinter or internal printer

Model	T& S 14B+	T& S 17B+	T& S 23B+
ChamberDimensions(mm)(Φ × D)	250× 270	250× 380	250× 500
Chamber Capacity(liter)	14L	17L	23L
Overall Size(cm)(L× W× H)	48× 48× 52	48× 56× 42	48× 67× 42
Heater	1600W	1800W	2000W
Net Weight(KGS)	37	46.5	56
Gross Weight(KGS)	45	55	65
Packing Size(cm)	68× 60× 50	73× 60× 50	87× 60× 50
Minimum Desk Size(cm)	48× 35	48× 40	48× 50
Power Supply	220± 10%, 50/60HZ, 10A
Sterilize Temperature	121/134
Sterilize Time	Please refer to different programs.
Dry Procedure	Vacuum drying
Sterilizer Construction	Stainless steel SUS#304
Water tank	Internal
Stainless steel instrument container	5 trays

Safety Devices:
A. Over heat control: When inner temperature is overheated, power will be shut down automaticlly and alarm system
B. Over pressure control: It has alarm system when over pressure.
C. Automatic, multi-protections and Safety door lock system
D. Low water level indictor: It has alarm system when low water
Warranty: 2 years warranty time,during this period, we will supply you free parts for maintenance if necessary, except for human damage... out of date, you should bear the shipping cost and the spare parts cost...
of course we will support you technical service for lifetime !
After service:
Please contact with the telephone and emaisl at any time.
Because of the time difference, therefore, sending Email is the best and convient way to contact us. Upon receipt of your e-mail, we give u reply immediately, offering solutions to equipment failures. Tonsor will extend the greatest effort to help your getting spare parts, speeding up your feed-back to customer demand.
QC:
QC have 100% inspection and random check on the parts and machine, ensure 100% products with high quality.
Package: 1PCS/CTN
Transportation: By air, by sea, by express.
