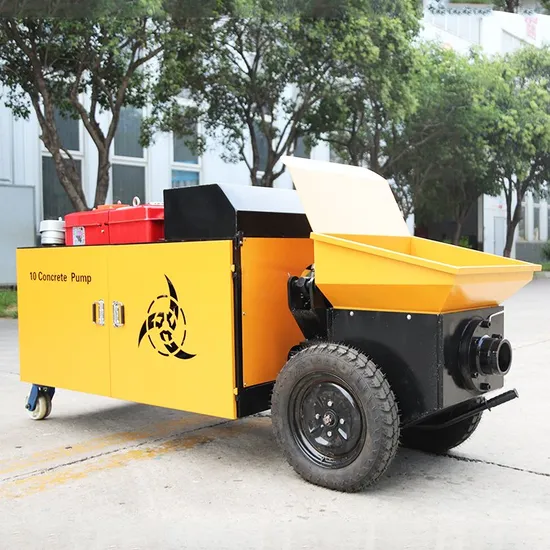

Stationary Concrete Pump Hydraulic Trailer Truck Mini Diesel Portable Gear Mortar Concrete Pumpconcrete Gear Pump
Basic Info.
Model NO.
10 Concrete Pump with Diesel engine
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
7-11m3/H
Feeding Height
1400mm
Vibrating Amplitude
1.1mm
Certification
ISO9001: 2000
Condition
New
Color
Yellow
Model
10 Concrete Pump with Diesel Engine
Working Capacity
7-11m3/H
Outlet Pressure
8MPa
Max Granules Diameter
3cm
Power
17.8kw/28HP
Weight
850kg
Diameter of Steel PE
100mm
Transport Package
Wooden Case or as Required by The Customer
Specification
2480-1140-1400mm
Trademark
ZHONGMEI
Origin
China
Production Capacity
1000 Sets Per Month
Packaging & Delivery
Package Size
250.00cm * 120.00cm * 150.00cm
Package Gross Weight
850.000kg
Product Description
Hot SalesProduct Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
stone concrete pump is a motor-driven high-pressure S pipe valve fine stone
concrete pump. The machine system is reliable, low failure rate, easy maintenance, is the ideal fine stone (mortar) concrete conveying equipment. Can be applied to water conservancy, electricity, railways, highways, tunnels, bridges and culverts, ports, mines, high-rise buildings, national defense projects. This machine is especially suitable for large-scale and high-efficiency construction of fine-grained concrete filled layer or mortar filled layer in floor heating project. It can also be used for conveying fine aggregate concrete or mortar in construction. This machine is equipped with spray accessories, but also do spray pump, for concrete, mortar, refractories and green soil spraying and throwing the main technical features are as follows: - Distribution valve using advanced S-tube valve, good sealing, simple and reliable structure. Eye board and wear ring wear-resistant alloy, good wear resistance, long life, easy to replace, wear ring can automatically compensate for the gap mechanism. - hydraulic system electronic control commutation, commutation impact small. - With low-pressure large displacement and high-pressure small displacement of two working methods.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
| Model: | 10 Concrete Pump with Diesel engine |
| Working capacity: | 7-11m³/H |
| Outlet pressure: | 8Mpa |
| Max Granules diameter: | 3cm |
| Diesel engine: | Changchai |
| Power: | 17.8KW/28HP |
| Conveying cylinder size: | Φ 140*500mm |
| Working horizontal distance: | Max 80m |
| Working vertical Height: | Max 30m |
| Weight: | 850KG |
| Machine Size: | Machine size:2480-1140-1400mm |
| Diameter of steel pipe: | 100MM |
