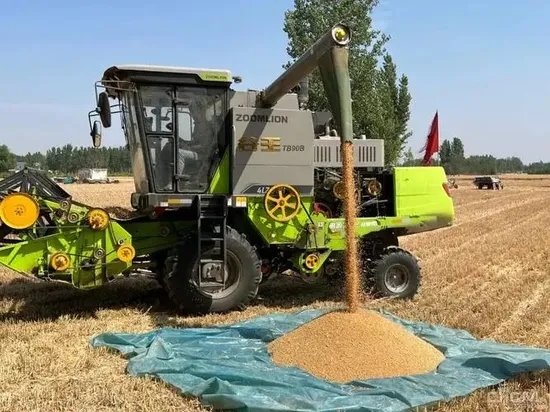

Chinese Top Brand Zoomlion Te100 Combine Harvester Wheat Corn Double Headers Can Be Boxed in Container
Basic Info.
Model NO.
TE100
Application
Sugarcane
Power Source
Diesel
Harvest method
Picking
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Backpack Type
Certification
CE
Color
Optional
Condition
New
Application Field
Agriculture
Warranty
1 Year
Model
Te100
Dimensions(L*W*H)
11500×2200×3630mm
Track Width
400mm
Transport Package
Nude Package
Specification
/
Trademark
Evangel
Origin
China
HS Code
8429401900
Production Capacity
100
Product Description
Chinese Leading Brand Zoomlion TE100 Combine Harvester with Super Low Price! ! !COMBINE HARVESTER TE100:
Over 1.5m row spacing Feeding capacity 23kg/s 230HP high pressure common rail Yuchai engine 360° in-situ rotation, easy for steering Three-section conveying arm Automatic variable-diameter conveying technology Luxury AC cab, High degree of automation ADVANTAGE INTRODUCTION: * Suitable for working on slope below 10°and field over 1.5m * Three-section bended conveyor, quick release structure that straight and bend type * Front feed roller is driven by two hydraulic motor * Newly added line-keeping system
Product Parameters
| Model | Unit | TE100 | |
| Dimensions(L*W*H) | mm | 11500×2200×3630 | |
| Weight | kg | 9800 | |
| Rail distance | mm | 1400 | |
| Wheel base | mm | 2310 | |
| Grounding length | mm | 1670 | |
| Engine | Model | / | High pressure common rail |
| Rated power | kW/rpm | 140/2050r/min | |
| Displacement | L | 7 | |
| Emission grade | / | GUO 3 | |
| Track width | mm | 400 | |
| Earthing voltage | kPa | 59 | |
| Feeding capacity | kg/s | 6 | |
| Adaptive ridge spacing | mm | ≥1100 | |
| Adaptive ridge height | mm | 0~200 | |
| maximum gradability | ° | ≤20 | |
| Operating forward speed | km/h | 0~6.65 | |
| Qualified rate of cutting height | % | ≥90 | |
| Root breaking rate | % | ≤10 | |
| dirt percentage | % | ≤8 | |
| Total loss rate | % | ≤5 | |
| Qualified rate of sugarcane section | % | ≥93 | |
| Fuel consumption per hectare | kg/hm2 | 190 | |
