Enamel Jacket Tank 120L 150L 200L 250L 300L for Flat Solar Water Heater with Keymark

Product Description

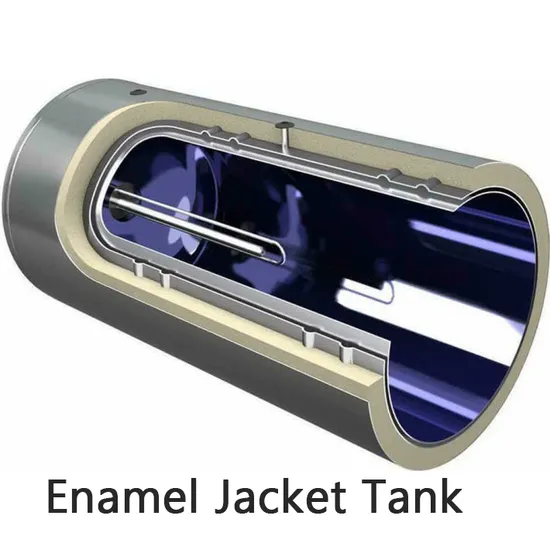

Sunrain Enamel Jacket Water Tank
Cost-effectiveness combined with high efficiencyCombines high performance, autonomy, simple installation and cost effectiveness. Produced with the most refined raw materials, always according to the international standards, holds all the certificates which guarantee it's quality.
Available in:
Closed-loop or Open-loop
Water storage tank: 3mm thickness cold rolled steel with a double internal layer of enamel, baked at 860°C according to DIN 4753. The enameling is done in our own high tech industrial facilities. The water storage tanks are checked individually upon exit from the enameling unit, assuring the top quality of the enamel.
Surrounding heat exchanger (Jacket) of 1.5mm cold rolled steel for the operation of the closed loop, which is compulsory at low temperatures and also in areas with water with high mineral content.
Thermal insulation: ecological, high-density (>50kg/m³) expanded polyurethane ensures minimum heat loss, maintaining the hot water temperature.
External housing of pre-painted steel.
Cathode protection by magnesium anodes for effective internal protection against corrosion and mineral deposits caused by electrolytic reactions.
Enamel Jacket Water Tank Spec

Model	Enamel Jacket Water Tank Spec
	Type	Dimensions (mm)	Capacity (L)	Qty	Weight (kg)
FPTS-120	Horizontal	Ф560×970	120	1	41
FPTS-150	Horizontal	Ф560×1140	150	1	57
FPTS-200	Horizontal	Ф560×1470	200	1	71
FPTS-250	Horizontal	Ф600×1540	250	1	82
FPTS-300	Horizontal	Ф600×1780	300	1	93
