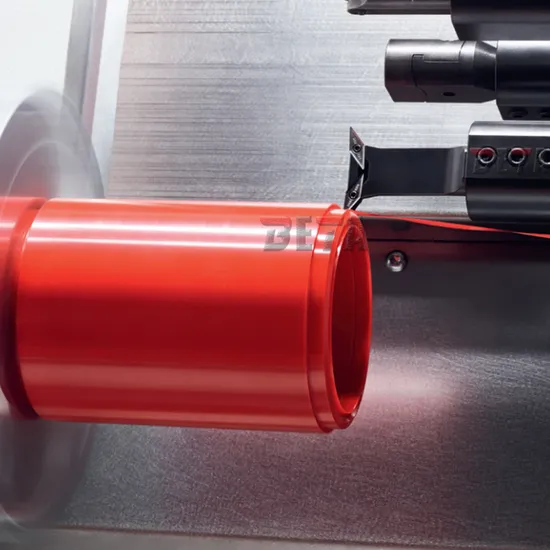

High Precision Hot Sale PU NBR Rubber Oil Seal Maker Solution CNC Turning Lathe Seal Making Machine with Software
Basic Info.
Model NO.
CS800
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Seal Macking CNC Lathe Machine
Structure
Slant Bed CNC Lathe
Max. Turning Seal Diameter
800mm
CNC Controller
Siemens 828d/Fanuc
Color
OEM
Chuck
Manual Chuck/Hydraulic Chuck
Key Words
Seal Maker, CNC Turning Machine for Seal
Workpiece
Seal Raw Materials
Delivery Time
2 Months
Warranty Time
12 Months
Loading Port
Shanghai Port, China
Tools
Vdi20 Tool Holder and Inserts
Function
CNC Turning Lathe Machine for Seal Making
Raw Material
PU, NBR
Turret
Horizontal 8 Station Turret
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
30 Sets Per Month
Packaging & Delivery
Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
3500.000kg
Product Description
Seal Solution Hot Sale Seal Making CNC Turning Lathe Machine with Software| Specification | CS800 |
| Max. Turning diameter over bed | 830 mm |
| Max. Seal Turning diameter | 800 mm |
| Spindle | A2-6 |
| Spindle bore diameter | 65 mm |
| Max. spindle speed | 4200 r/min |
| Chuck size | 8 inch chuck |
| X-axis rapid move speed | 24 m/min |
| Z-axis rapid move speed | 24 m/min |
| X-axis travel | 410 mm |
| Z-axis travel | 450 mm |
| X-axis motor (with brake) | Siemens 2.29 kw / 11Nm |
| Z-axis motor | Siemens 2.29 kw / 11Nm |
| X-axis guide | SKF 35 |
| Z-axis guide | SKF 35 |
| Turret type | Horizontal 8 station VDI turret |
| X/Z axis ball leadscrew | Taiwan HIWIN SKF |
| Leadscrew bearing | Germany FAG |
| Spindle bearing | NSK |
| Electrical components | Schneider |
| Main motor power | 11 kw |
| CNC Controller | Siemens 828D |
| Motor power of suction machine | 5.5 kw |
| Machine weight | 3200 kg |
| Overall size of CNC lathe | 2750*1780*1920 mm |
| Overall size of Suction machine | 900*1100*2000 mm |
| Repeated positioning accuracy X-axis/Z-axis | 0.004mm/0.004mm |
