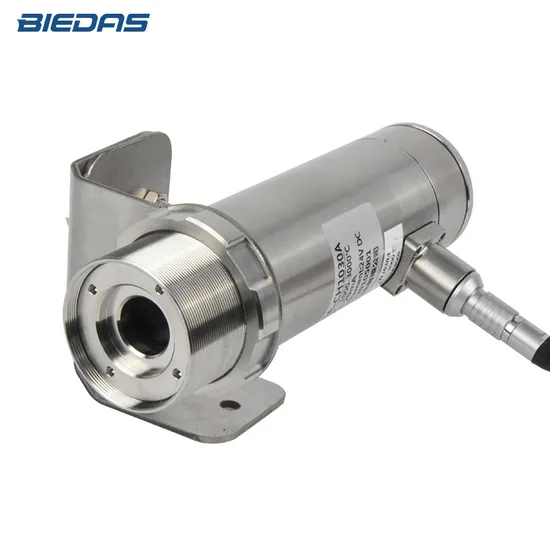

Temperature Measurement Range 350-3500º C Fast Response Speed Short Wave Infrared Temperature Sensor
Basic Info.
Model NO.
BYD-CH0618
Output Signal Type
Analog Type
Production Process
Integration
Material
Stainless Type
IP Rating
IP65
Certification
CE
Customized
Customized
Accuracy
1%
Repeatability
0.5%
Response Time
20 Ms
Resolution
1c
Emissivity
0.10-1.00 Adjustable
Distance Coefficient
400:1
Transport Package
Box Package
Trademark
BIEDAS
Origin
China Jiangsu
HS Code
9025191090
Production Capacity
100000 Pieces/ Year
Packaging & Delivery
Package Size
23.00cm * 14.00cm * 16.00cm
Package Gross Weight
3.000kg
Product Description
Infrared Temperature Sensor Product Description| Accuracy | ±1% of reading |
| Repeatability | ±0.5% of reading |
| Response Time | ≤20 ms |
| Resolution | 1ºC |
| Emissivity | 0.10~1.00 adjustable step size 0.01 |
| Distance Coefficient | 400:1 |
| Time Interval | 1~10S Step 1S |
| Output | 4~20 mA |
| Ambient Temperature | -10ºC~60ºC |
| Storage Temperature | -40ºC~85ºC |
| Protection Grade | IP65 |
| Size | Length 167mm Dia. Ф50mm |
| Weight | 0.6Kg; With cooler and air purge device 1.6Kg |
| Power | 24V DC ±10%,100Ma |
