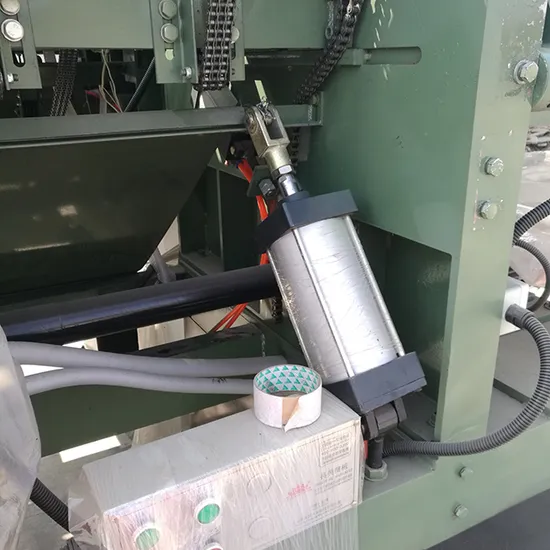

L Type Lone Core Composer
| US$15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
L type lone core Composer
Customized
Customized
Automatic Grade
Automatic
Structure
Planetary
Transmission Method
Hydraulic Pressure
Transport Package
Container Loading
Specification
100000cbm capacity
Trademark
jingyuan
Origin
Linyi, China
HS Code
8413603101
Production Capacity
5000sets/Year
Product Description
L type lone core Composer| Name | Model/Description / | Unit Price () |
| L type lone core Composer | CLS-4B1 |
| CLS-4()(Short core part) | |||||
Position applied | Name of part | Type | Brand | Quantity | |
| 1 | Main part | Main frame | + Channel steel+steel plate | Changxing special | 1 |
| 2 | Front driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 3 | Edge cutting driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 4 | Back driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 5 | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 | |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 6 | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 | |
Servo motor | EA180-8R5-3A-3PH-3.0KW | AHCHUAN | 1 | ||
| 7 | Driving device for bridge | Gear Reduce | BWDO-9 0.75KW | Dongli | 1 |
| 8 | Glue Tank | 6KW | CHANGXING | 1 | |
| 9 | Air cont | 1.5KW | HISENSE | 1 | |
| 12 | Knife | CHANGXING | 1 | ||
| 13 | Elec. Control system | PLC | AP360-BT-A | TECO | 1 |
| AP-16EMT | TECO | 1 | |||
| 14 | AP-4RD | TECO | 1 | ||
| PLC | XC2-14T-E | XINJIE | 1 | ||
| 15 | () | AH-102L | WECON | 1 | |
| 16 | DZ47-60 | Schneider | 8 | ||
| 17 | CJX2-1201 | Schneider | 7 | ||
| 18 | YJ2N-GS-24VDC | Schneider | 20 | ||
| CLS-4b Specification | |||
| Size(LXWXH) | 4.35*1.555*2.4 | ||
| Total power | 23.25KW | ()Speed | 36m/min |
| Feeding speed | 1.2-4.0mm | ()Veneer size | 3x6 4*8 |
| CLS-4b()(Long core part) | |||||
Position applied | Name of part | Type | Brand | Quantity | |
| 1 | Main part | Main frame | + Channel steel+steel plate | CHANGXING | 1 |
| 2 | Front driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 3 | Dimension clipper driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 4 | Back driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 5 | Glue Tank | Heating rod | 4.5KW | CHANGXING | |
| 6 | Heating Rod | 1.5KW | |||
| 7 | Driving device for bridge to stacking frame | Gear reducer | BWDO-9 0.75KW | Dongli | 1 |
| CLS-4b Specification | |||
| Size(LXWXH) | 2.97M*1.555M*2.4M | ||
| Power | 15.75KW | Output | 4-6P/min |
| 1.5-4mm | |||
| (Stacker) | |||||
Name of part | Type | Brand | Quantity | ||
| 1 | Main frame | + | Changxing special | 1 | |
| 2 | Driving device for lifting shaft of stacking frame | Motor | YEJ-100L1-4 2.2KW | LIJIU | 1 |
| Reducer | WPDS-100-B 2.2KW | XIAOYU | 1 | ||
| 3 | Driving device for Climbing of stacking frame | Motor | 1.1KW | Dongli | 1 |
Device for out-feeding | Gear Reducer | BWD-1-59-1.5 | Dongli | 1 | |
| CLS-4b Specification | |||
| Size(LXWXH) | 3.75M*1.9M*2.6M | ||
| Overall() | 7m*9m | ||
| Power | 4.8KW | Output | 4-6P/min |
| Thickness | 1.5-4mm | ||
