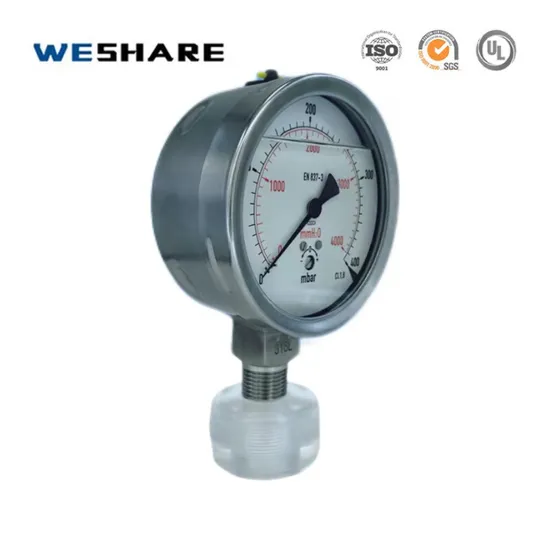

Stainless Steel Pressure Gauge for Accurate Monitoring of Hydraulic Systems

Product Description

Product Description Shell material
As the name suggests, its casing is made of stainless steel. Stainless steel is corrosion-resistant and anti-oxidation, and can be used for a long time in harsh environmental conditions (such as humid and corrosive gas environments), ensuring the service life of the pressure gauge.
internal structure
The internal movement is generally made of stainless steel or other corrosion-resistant materials to ensure that it will not be corroded or damaged when exposed to various media.
The pointer and dial are clearly designed for easy reading of pressure values. Dials are usually coated with a corrosion-resistant coating to prevent blurring of the scale during long-term use. Function:F)Corrosion:N)Seismic corrosion
Stainless steel
Meter nominal diameter and mounting:respectively 40,50,60,100,150,200 mm diameter radial mounted directly
63,103,153,respectively 60,100,150 mm diameter axial inlay mounted (of which 63 directly mounted axial type otherwise) Pressure gauge

Ambient temperature:-25~70ºC(liquid-filled enclosure)-40~70ºC(not liquid-filled enclosure)
Temperature effects:not more than 0.4%/10ºC (temperature deviation from 20±5ºC)
Anti-vibration environment:VH4 level (housing filling)VH3 level (not liquid-filled enclosure)
Housing protection grade:IP64

Part Name	Materal Grade
	Y-60B	Y-100B,Y-150B
Connector	0Cr18Ni9(304)	0Cr17Ni12Mo2(316)
Bourdon tube	0Cr18Ni9Ti(304)	0Cr17Ni12Mo2(316)
Shell	0Cr18Ni9(304)
