China Wall Cladding Double Layer Steel Profile Zinc Metal Roofing Roof Glazed Tile Press Iron Sheet Metal Bending Making Cold Roof Roll Forming Machine Price
| US$5,599.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SRYWJ-840SC
Tile Type
Glazed Steel
Certification
CE
Condition
New
Customized
Customized
Usage
Roof, Wall, Floor, Purlin Shelf
Transmission Method
Electric
Layer
Double Layers
Rolling Thinckness
0.3-0.8mm
Feeding Width
1200mm
Thickness of Equipment Medium Plate
13 Rows
Frame Structure
250 H Steel
Molding Shaft Material
45# Steel
Transport Package
Wooden Pacakge or Directly Load in Container
Specification
SRYWJ-840SC
Trademark
SHARE
Origin
China
HS Code
8474801000
Production Capacity
8-10m/Min
Packaging & Delivery
Package Size
600.00cm * 200.00cm * 125.00cm
Package Gross Weight
3000.000kg
Product Description

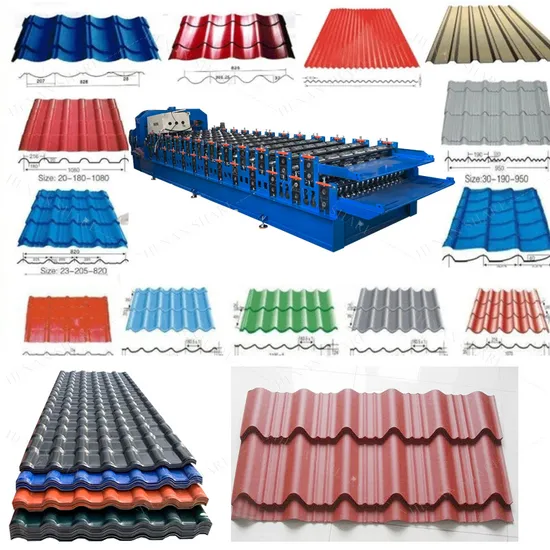

cz gutter double layer purlin metal stud and track shutter door corrugated iron building material roof sheet rolling roll forming machine tile making machinery Product DescriptionThis is double layers roll forming machine. It can make two different shape and size tiles.
The shape and size all can be customized as your request.
Detailed Photos
| Model | SRYWJ-840SC |
| Voltage | 380v,50hz, 3 phases(customizable) |
| Total Power | 6KW |
| Speed | 6-15m/min |
| Roll material thickness | 0.3-0.6mm |
| Width of equipment inlet plate | 1000mm |
| Sprocket chain specifications | 0.6" |
| Driving method | Sprocket chain drive |
| Molding press roller material | 45# steel |
| Main engine large frame structure | 250H steel |
| Molding shaft size | Diameter 70 |
| Number of rolling molding rows | 12-14 rows |
| Weight | 3000kgs |
| Dimension | 6000*2000*1250mm |
We can customize the machine color and logo for you.
The final product shape and size all can be customized as your request. Please don't hesitate to send us the inquiry.
