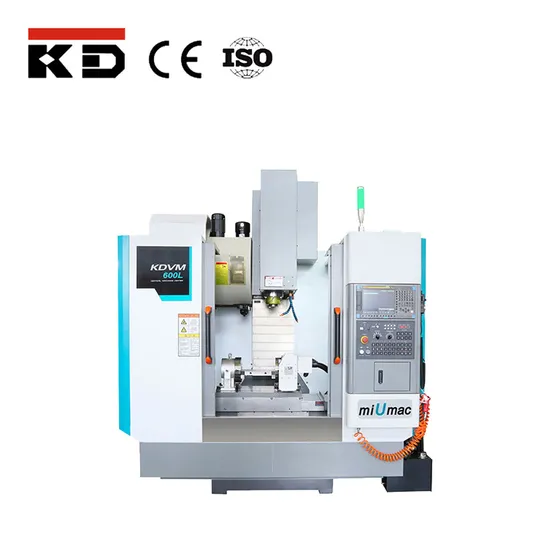

CE Fanuc Control Vertical Machining Center Kdvm600L Milling Machine
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDVM600L
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X Travel
600mm
Y Travel
430mm
Z Travel
500mm
Spindle
Bt40
Spindle Speed
8000rpm
Main Motor
7.5/11kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
84571010
Production Capacity
523
Product Description
PRODUCT SPECIFICATIONS| MODELS | KDVM600L |
| TRAVEL | |
| X axis | 600mm |
| Y axis | 430mm |
| Z axis | 500mm |
| Spindle center to column | 484mm |
| Spindle end to table | 90-570mm |
| TABLE | |
| Tablesize | 720×400mm |
| T-slot(width×number×space) | 18mm×3×110mm |
| Max.table loading | 500kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 9kw |
| Spindle speed | 8000rpm |
| Driving by belt or gears | Belt |
| Kind of gearbox | without gearbox |
| Cutter removal from spindle | Pneumatic |
| FEED | |
| X/Y/Z fast feed | 36/ 36/ 36m/min |
| Torque axis motors | 11/ 11/ 11Nm |
| ATC | |
| Type (disc/carousel) | Carousel |
| Tool number | 20 |
| Max. tool size (With adjacent tool) | Ф76mm |
| Max. tool size (Without adjacent tool) | Ф150mm |
| Max.tool length | 300mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 2s |
| ACCURACY | |
| Positioning | ≤0.008 |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm |
| OTHERS | |
| Min.Input | 0.001mm |
| Coolant pump power | 370w |
| Overall dimension | 3550x2100x2400mm |
| Net weight | 3900kg |
