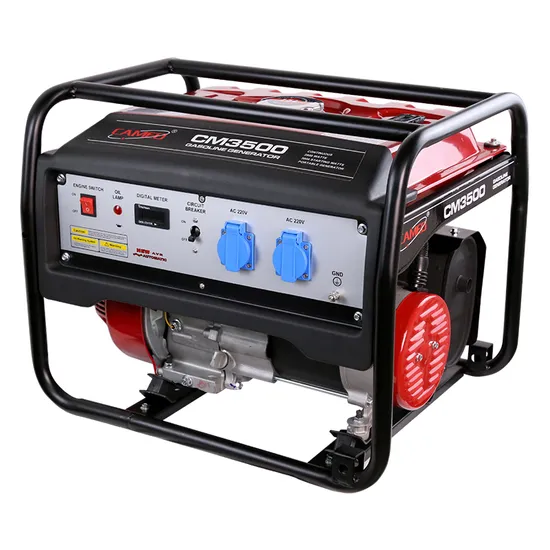

3kw 3kVA Portable Small Gasoline Generator Set Price
Basic Info.
Model NO.
CM3500
Output Type
AC Single Phase
Starting
Recoil/Electric
Phase
Single
Power
＜5kW
Standard
Standard
Speed
3600rpm
Engine Model
Cp170f
Package Size(mm)
607*475*495
Displacement(Cc)
208
Rated Power
2.8kw
Max. Power
3kw
N.W/G.W(Kg)
48/51
Voltage(V)
110/230V
Fuel Type
Gasoline
Engine Power
7.0HP
Frequency
50/60Hz
Rated Current
22A
Fuel Capacity(L)
15
Transport Package
Carton Box
Specification
607 x 475 x495
Trademark
Cameo
Origin
Chongqing, China
HS Code
8502110000
Production Capacity
500000 Unit/Year
Product Description
Product Description About this itemOpen Frame Generator
3000 peak watts, 2800 running watts; comes with key fob, Electric one-button start and stop;
15L fuel tank with fuel gauge, up to 11.5 hours of run time. Rated speed (RPM): 3000. THD: ≤ 3%
Equipped with two household 230V sockets, and the outlets are equipped with dust and waterproof rubber covers for added safety. Powered by a commercial 208cc four-stroke gasoline engine, with automatic low oil shutoff function and 3-in-1 digital meter, plug and play.
Accessories include key fob, oil funnel, tool kit, standard plug and user manual. (Minimal assembly required by the user)
Optional one-button start and remote start, pre-start heating (for winter), ATS system.
All CAMEO portable generators are tested for functionality at the factory and may contain minimal residual oil and/or fuel odor; meet EPA EU-V, CE standards; provide a 1-year limited service, labor and parts warranty.
Product Parameters
| Model | CMG7000S-B | CMG8000S-B | CMG9000S-B | CMG13000SDE-B |
| Frequency(Hz) | 50 | 50 | 50 | 50 |
| Rated powe(KW) | 5.0 | 6.0 | 7.0 | 10.0 |
| Max.power(KW) | 5.5 | 6.5 | 7.5 | 11.0 |
| Voltage(V) | 230 | 230 | 230 | 230/400 |
| Phase | Single | Single | Single | Three |
| Fuel capacity(L) | 25 | 25 | 25 | 25 |
| Engine Model | CP190F | CP192F | CP460 | CP690 |
| Oil capacity(L) | 1.1 | 1.1 | 1.1 | 1.65 |
| Displacement(CC) | 420 | 439 | 460 | 690 |
| Cylinder bore(mm) | 90*66 | 92*69 | 92*69 | 2-78*71 |
| Start way | Electric | Electric | Electric | Electric |
| Fuel Type | Gasoline | Gasoline | Gasoline | Gasoline |
| Noise(dB@7m) | 75-78 | 75-78 | 75-78 | 75-78 |
| Package Size(mm) | 1020*555*785 | 1020*555*785 | 1020*555*785 | 1217*650*933 |
| N.W/G.W(kg) | 125/146 | 127/148 | 131/151 | 238/285 |
| Loading Q'TY(20GP/40HQ) | 40/84 | 40/84 | 40/84 | 26/54 |
