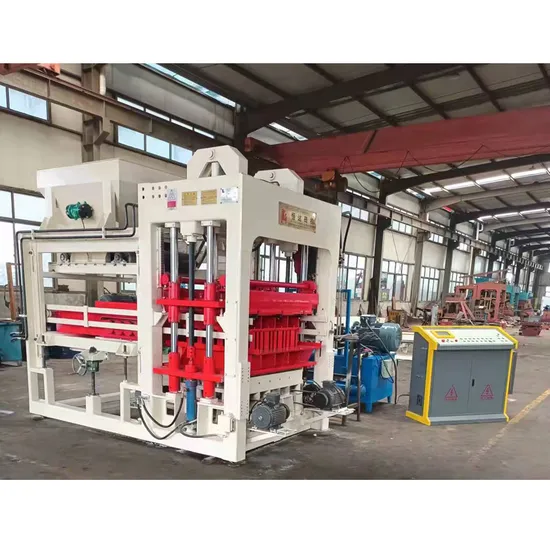

Hydraulic Automatic Concrete Cement Brick Making Machine
| US$39,370.00-90,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
QT10-15
Certification
CE, ISO9001: 2000
Customized
Non-Customized
Automatic Grade
Automatic
Type
Block Machine
Automation
Automatic
Brick Raw Material
Cement, Sand, Stone
Processing
Hydraulic Pressure
Product
Solid and Hollow Block, Paver Block
Control
PLC
Vibartion Form
Table and Mould Vibration
Machine Type
Block Making Machine
Transport Package
40 Feet Comtainer
Specification
SGS ISO9001
Trademark
HENGDA
Origin
China
HS Code
8474809090
Production Capacity
100sets/Year
Packaging & Delivery
Package Size
4100.00cm * 1850.00cm * 2200.00cm
Package Gross Weight
1000.000kg
Product Description
QT10-15 concrete block making machine is equipped with a frequency conversion vibration system. The system includes motors for top and bottom vibration generation, the paver block machine price utilizes the LG frequency converter. For reliable performance, the product is outfitted with LG PLC, as well as touch screen .Moreover, the hydraulic system of this paver block machine price is composed of integrated modular units from Germany and Italy.
The overall dimension (L x W x H):
5,200 x 2,300 x 2,960mm with facemix device
3,200 x 2,300 x2,960mm without facemix device
Concrete products: 50-300mm in height
Pallets size: 1,100x850mm
Main Technical Specifications of QT10-15 concrete block making machine
| Production per mould | 10pcs/mould (Hollow block: 390×190×190mm) |
| 48pcs/mould (Solid block: 240×115×53mm) | |
| 24pcs/mould (Interlocking block: 225×112.5×60mm) | |
| 35pcs/mould (Holland brick: 200×100× 60-80mm) | |
| Cycle time | 15-25 seconds(Depending on product type) |
| Production per shift (8 working hours) | Hollow block (400×200×200mm): 14400-19200pcs |
| Solid block (240×115×53mm): 77760-92160pcs | |
| Interlocking block: 240×115×90mm): 31104-46080pcs | |
| Holland brick (200×100×60-80mm): 40320-50400pcs. | |
| Vibration frequency | 2940 -3600rolls/minute or 50Hz |
| Vibrating force | 100kN |
| Motors power | 48kw |
| Volume of hoppers | Main material: 900L |
| Face material: 750L | |
| PVC Pallet size | 1100×850×22mm |
| Gross weight | 9.0 T (without face mix device) |
| 12T (with face mix device) | |
| Raw materials | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste. |
| Applicable products | Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc. |
| Applied fields | Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc. |
We are clay brick machine and concrete block making machine manufacturer, welcome to inspect our factory.
