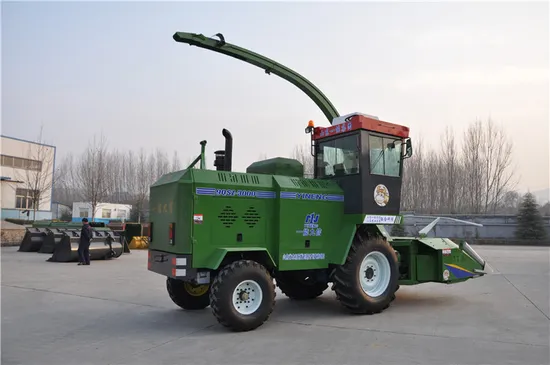

9qsz3000 Agriculture Machines Forage Harvester

Product Description

1. Features:
* Using the Germany champion's disc technique vertical cutting platform, work width 3 meters,the largest in China..

* High-power YTO engine, 260 horsepower output, enough reserve power, reliable, low fuel consumption;

* Adopt the operating system of electro-hydraulic control and CVT, electronic header, which is convenient for driver to operate;

* Cast spout is in the way of rotating turbine, can be controlled wirelessly and remotely by handle; easy for the car-following operation;

* Adjust the cutting length of the materials in multi-polar, The unique grain crushing and scrubbing device, straw rubbing rate is more than 95%, grain crushing rate is more than 90%.
2. Main Technical Parameters:

Items	Parameters
Operation way	Auto-run unlevel harvest
Cutting table type	vertical cylinder
Operation Range	3000mm
Operation speed	6-10km/h
Efficiency	30-80T/h
Cutting Length	7-35mm(adjustable)
Loss rate	≤3%
Min cutting height	≤150
Engine Power	192kw(260hp)
Dimension	7500*3090*4750mm
Overall weight	8600kg

3. Detail Pictures:
Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
