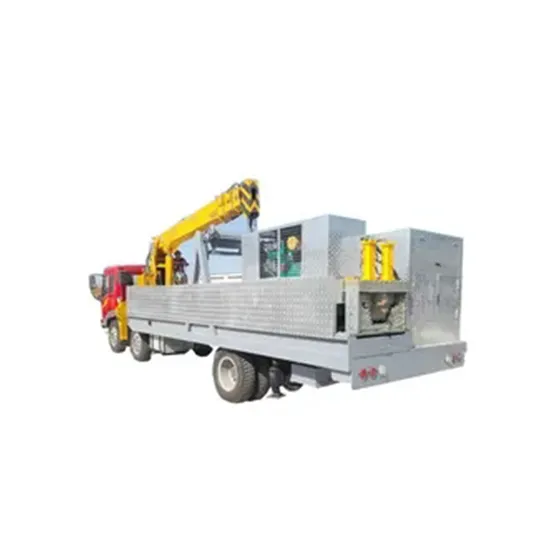

K Span Arch Metal Roof Machine PPGI Tile Making Machinery Roof Tile Roll Forming Machine

Product Description

Basic Info

Size	11.6m*2.4m*2.3m
Total weight	12t
Material of Bending Leaves:	Stainless Steel
Material of Cutting Blade:	Cr12MoV Steel
Cutting type	Hydraulic / Mechanical controlling cutting
Material of Shafts:	45# Steel, quenched HRC 58-62
Step of Rollers:	13 Steps
Conical Power:	3.0kw
Bending Power:	4.0kw
Electric Standard:	380v, 50hz, 3 phase

Product Description

Zhongke Arch roof Roll Forming Machine with high quality

Technical parameters

Size	11650mm×2230mm×2300mm
Feeding width	914mm
Proper span	≤42m
Total weight	About 15000kg
Effective width	610mm
Sheet operating factor	66.7%
Total power	17.9kw
Cutting power	3.0kw
Forming power	7.5kw
Bending power	3.0kw+1.1kw×2
Sewing power	2.2kw
Controlling system	PLC and manual
Cutting mode	Hydraulic cutting
Depth of the groove	203mm
Corollary equipment	Equipped with generator
Material of roller shaft	45#steel,galvanized
Material of rollers	45#steel,quenched with hard chrome

Characteristics The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument. Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement. Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler. Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.

Company Profile

Our factory is a professional Roll Forming Machine manufacturer with 17 years experience,we have 100 well trained workers and 20,000m'(square meters) workshops.Specializing in the production of various types of tile press equipment,the development and production of automatic intelligent control tile press equipment production line, C type steel, dust collector anode plate and other equipment.Our factory can design and produce various special-shaped cold-bending forming equipment according to the different needs of users.

Why Choose Us

Our machine
Other machine
Our customers

Packaging & Shipping

FAQ

Q: Can one machine only produce one size? A: Not exactly, it depends on the machine. Q: Do you have after-sales support? A: Yes, we are happy to give advice and also have skilled techniciansavailable to maintain the machine if needed. Q: How to visit your company? A: We can pick you up from Shanghai or Hangzhou airport. Or railwaystation Shaoxing North. Q: What can you do if the machine is broken? A: Our machine's warranty period is 12months. if the broken parts can'trepair, we can send the new parts to replace the broken parts, butyou need to pay the express cost by yourself. if after the warrantyperiod, we can through negotiation for solving the problems, and wesupply the technical support for the whole life of the equipment. Q: Can you be responsible for transport? A: Yes, please tell us the destination port or address. we have rich expe-rience in transport. Q: You are a trade company or factory? A: We are a Manufacturer. Q: Why your price is higher than others? A: As we persist on that each factory should put quality in the first place.We spend time and money on developing how to make machinesmuch more automatic, accurate, and high quality. We can make surethat our machine could use more than 20 years without any problem. Q: Do you have overseas engineers? A: Yes, we not only provide overseas engineers but also provide techni-cal training. Q: Do you provide customized? A: Sure, we can design the equipment according to the data of thestructural section you provide. We are a professional sheet metalforming machine designer and manufacturer.
