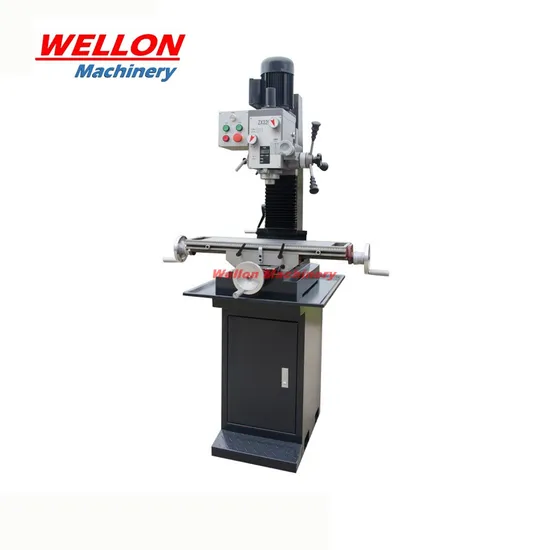

Vertical Milling Machine Zx32g Worktable Milling Machine Price
| US$800.00-1,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX32G
Structure
Desktop
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Product Name
Vertical Milling Machine
Max. Drilling Capacity (mm)
32mm
Max. Face Mill Capacity (mm)
63mm
Table Size
700X190mm
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
Tengzhou China
HS Code
84596190
Production Capacity
200 PCS/Month
Packaging & Delivery
Package Size
102.00cm * 87.00cm * 110.00cm
Package Gross Weight
200.000kg
Product Description
FAQProduct Description
Vertical Milling Machine Zx32g Worktable Milling Machine Price
Performence Features:
CE high precision Drilling and Milling machine
High strength column
Good strength gear grinding ,low nose
Head stock tilts left and right
Wide electrical box,easy operation
High precision manual feeder
Depth ruler,easy operation and read out Technical parameter:
| Specification | ZX32G |
| Max.drilling capacity | 32mm |
| Max.tapping capacity | 16mm |
| Max.face milling capacity | 63mm |
| Table size | 700X190mm |
| Spindle taper | MT3/R8 |
| Cross travel | 190mm |
| Longitudinal travel | 320mm |
| Vertical travel | 310mm |
| Spindle stroke | 75mm |
| T Slot size | 12mm |
| Spidle speed | 60-1650rpm |
| Headstock tilt left and right | 90° |
| Column size | 150X130X690 |
| Stand size | 550X340 |
| Distance from spindle to column | 320mm |
| Max.distance from spinde to table | 400mm |
| Power | 750W |
| N.W/G.W | 170/200 |
Standard Accessories:
1.Spindle deep ruler
2.Morse taper
3.Draw bar
4.Tool kit
5.drill chuck with arbor
Optional Parts:
1.Speed display
2.Vice
3.Milling chuck set
4.Keyless chuck
5.58PCS clamping tool kit 6.Coolant system
7.Stand base
