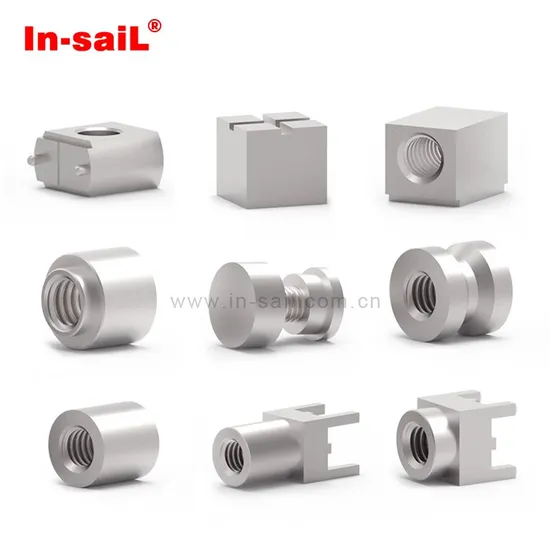

Surface Mount Standoff Spacer, Solder Standoffs, SMT Nut, SMD Soldering 7466203r 7466204r

Product Description

Shenzhen Manufacturer SMT Standoffs Fasteners for PCB
In-saiL is dedicated to manufacturing of precision components and the design, fabrication of engineering specialty fasteners and fastening solution development.Our production covers the fields of industrial electrical and electronic applications, electromedical, telecommunications and automotive equipment.
Manufacturing Capability
We have powerful manufacturing capability, our automatic lathes, CNC lathes, CNC machining centers, stamping machines and cold heading machines plus auxiliary equipment like milling machine, grinding machine, EDM and the cooperation of our partners, we are able to support every different components regardless of the prototyping or series production.
Auto Lathe Turning
The single shaft cam-base automatic lathes are capable of massive production of brass, aluminum alloy, stainless steel components.
Production range: O. D. 0.5-15
CNC Milling
4-axis and 5-axis machining centers are capable of complex structural parts.
Production range: 800X600

Materials	Brass C3604,CuZn39Pb3
Surfaces	Tin-plated(stand), further surface such as nickel,Sliver,nickel/gold and other on demand
Execution	Press-Fit,Through-hole Reflow,SMT soldeing
Dimensions	From 5x5 to 22x22mm, height above PCB from 3mm individuallly
Tightening Torque	2.2Nm; 1.2Nm;9Nm;17Nm; 0.5Nm; 1.6Nm
Pin Length	Up to 7.5mm(standard of 3.5mm)
Pin diagonal	1.6mm standrad others on demand
Final Hole Diameter	1.475mm
Pins	6, 8, 10, 12,16,25,36
Operating Temperature	-55ºC up to +150ºC
Advantages	1.Very high ampatity,ideally suited for high continuous and peak currents 2. Press-fit connections show extremely high environmental stability. 3. Low-resistance connection meand low self heating, hence less heat must be dissipated through the system. 4. No heat development on sensitive components and no thermal stress of the circuit board. 5. Extremely stable mechanical 6. No problems with cold solder joints 7. High Mechanical retaining forces 8.Double-sided mounting of circuit board is possible 9. Much higher long-term reliability as for solder connections. 10. More secure than soldering and screw connections 11. No Charges in the production of circuit boards necessary.
