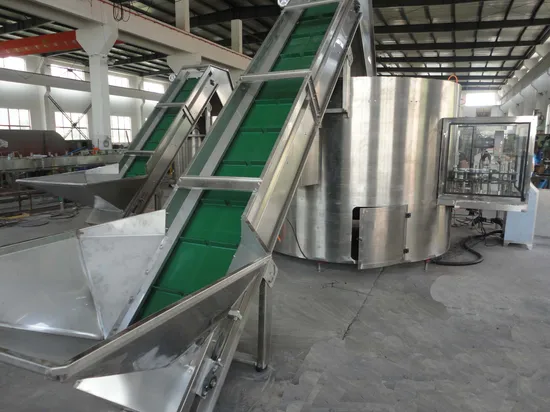

Turn Chaos Into Order Automatic Compact Size High Speed Bottle Container Unscrambling Machine

Product Description

Turn Chaos into Order Automatic Compact Size High Speed Bottle Container Unscrambling Machine
Brife introduction
LP series bottle unscrambler is used to feed the bottles into filling machine through air conveyor. Manually put bottles into the hopper, and then the unscrambler will sort the bottle and output one by one.
The unscrmbler is connnected to filling machine directly. The capacity is from 4000BPH TO 30000BPH. The speed is controlled by PLC; All the control and pneumatic compoments are world-famous brand like SMC/FESTO; Omron; Mitsubihsi and so on.
Features:
1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur
2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency
3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery
4) Dilapidated bottles will be eliminated by a special device
5) A lock detector is equipped for alarming; When locked, the machine will automatically stop
6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles
7) An oil pump will readily fill up the gears, bearings and the cams
8) Maintenance doors and mould replacement door provided
9) Mitsubishi, Omron and Siemens provide the main electrical components; Such as transducers, PLC, photoelectric switch and relay
Technical parameters:

Model	LP-12	LP-14	LP-16
Production capacity(bph)	7000-8000	9000-10000	11000-12000
The pressure of gas source(Mpa)	0.7	0.7	0.7
Gas Volume(m3/min)	0.4	0.6	0.8
Power(kw)	1.5	2.2	4
To adapt to bottle-type(mm)	Bottle DriveΦ50-Φ90,Bottles of high -150-290
Dimensions(mm)	1660*1730*2200	2200*2270*2200	2230*2300*2200
Machine weight(kg)	2000	3200	3400
