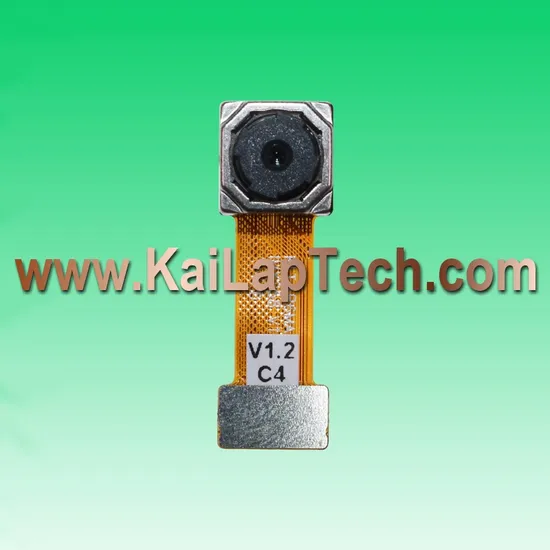

Klt-P6ma-Imx258 V1.2 13MP Imx258 Mipi-Schnittstelle Autofokus Kameramodul

Klt-P6ma-Imx258 V1.2 13MP Imx258 Mipi-Schnittstelle Autofokus Kameramodul

US$25.00-27.00 100 Pieces (MOQ)

Basic Info.

Model NO.
KLT-P6MA-IMX258 V1.2
Interface Type
Mipi
Specification
26.43 x 8.50 mm
Origin
China
Production Capacity
500000 Pieces

Product Description

13MP IMX258 MIPI-Schnittstelle Autofokus Kameramodul
Kameramodul Nr. KLT-P6MA-IMX258 V1.2
Kameramodul Nr. KLT-P6MA-IMX258 V1.2
Auflösung 13MP
Bildsensor IMX258
Sensorart 1/3.06"
Pixel Größe 1.12 um x 1.12 um
EFL 2.80 mm
F.NO 1.90
Pixel 4224 x 3136
Betrachtungswinkel 90.3°(DFOV) 77.4°(HFOV) 62.0°(VFOV)
Linsenabmessungen 8.50 x 8.50 x 5.35 mm
Modulgröße 26.43 x 8.50 mm
Modultyp Autofokus
Schnittstelle MIPI
Autofokus-VCM-Treiber-IC DW9763
Linsenmodell KLT-LENS-50013A1
Linsentyp 650 nm IR-Schnitt
Betriebstemperatur -20°C to +70°C
Gegenstecker BBR43-30KB533
