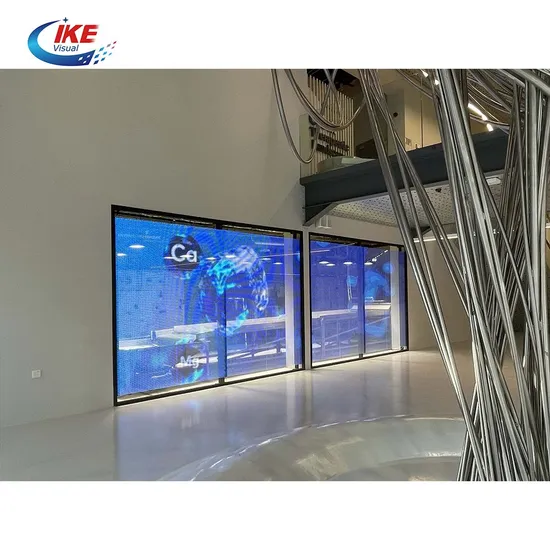

P20 P16 P10 P8 P6 P4 Indoor Outdoor Advertising Transparent Flexible LED Video Wall Window Glass Film Display
| US$390.00-600.00 | 1 Square Meter (MOQ) |
Basic Info.
Pixel Configuration
1R,1G,1B
Scanning Mode
1/16 Scan
System Operating Platform
WIN XP
Application
Stage Performance, Advertising, Shopping Guide
IP Rating
IP43
Certification
CE, RoHS
Input Volt.
100-240V
Flexibility
Min.Diameter 77cm Concave or Convex
Available Shape
Circle,Cylinder,M Shape,Concave,Convex,Cirved.
Available Brightness
High Brightness,Indoor Brightness
Shipping
by Air,by Sea
Service
Tech Support,After-Sales Service
Installation Way
Suspended,Stacked,Mounted
Type
Portable LED Pixel Wall for Retail Advertising
From
Foshan,China
Size
Customized
Packing
Flight Case,Plywood Case,Honeycomb Carton
Solution 1
Concave,Convex,S Shape,M Shape LED Display
Solution 2
Inner Cylinder,Outer Cylinder LED Display
Transport Package
Flight Case, Plywood Case, Honeycomb Carton
Specification
1000mm length
Trademark
IKE Visual
Origin
China
HS Code
8528591090
Production Capacity
500PCS/Month
Product Description
| Product name | Transparent P3.91 display screen | |||
| Pixel Pitch(mm) | P3.91mm | |||
| Pixel Configuration | 1R1G1B/SMD2121 | |||
| Point Spacing | 3.9mm*3.9mm | |||
| Module Size(W*H) | 500mm*125mm | |||
| Module Resolution(W*H) | 128mm*32mm | |||
| Pixel Density | 65536 | |||
| Brightness | 1500cd/m2 | |||
| Module Weight | 600g | |||
| Cabinet Material | Die-casting cabinet | |||
| Cabinet Size (W*H) | 1000mm*1000mm / 1000mm*500mm | |||
| Cabinet Resolution (W*H) | 256mm*256mm / 256mm*128mm | |||
| Drive IC | High refresh IC | |||
| Drive Mode | 1/16 scan | |||
| Viewing Angle(V/H) | 160 ºC | |||
| Transparency | >65% | |||
| Grey Scale | 65536 degree | |||
| Lifetime | >100,000 Hours (50%) | |||
| MTBF | >50,000 Hours | |||
| Operating Voltage | AC110V/220V±10% | |||
| Screen Power Consumption | Max: 800w/m2; Average:220w/m2 | |||
| Input Power Frequency | 50/60Hz | |||
| Operating temperature | -30--60ºC | |||
| Humidity | 10%-95% | |||
| Refresh Rate | ≥3840HZ | |||
| Control Method | Synchronized with the computer monitor | |||
| Color Temperature | 6500K-9500K | |||
| LED Control System | LINSN, Nova-star, Colorlight is selectable, Mocell | |||
| Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km | |||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI | |||
| Systems Operating Platform | Windows XP / Windows 7 / Windows 8 /8.1 / Windows 10 | |||
Company Profile
Our Advantages
Packaging & Shipping
FAQ Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for 10 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CE, ROHS ,FCC,IP65 authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:Generally, we can make the delivery within 10 working days according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory.
Q6:How long is the warranty?
A6:The standard warranty is 2 year. It could be longer upon request.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
