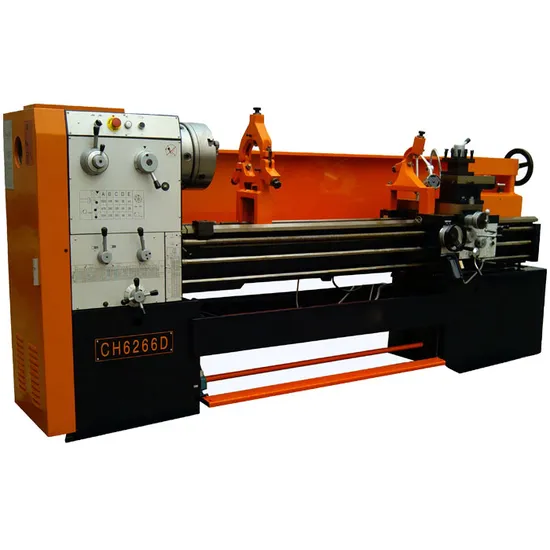

China High Precision Horizontal Metal Manual Conventinal Turning Lathe Machine Price for Sale
| US$6,400.00-9,595.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CDC SERIES
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Position
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed mm
360/400/500/600mm
Max. Swing Over Cross Slide mm
185/225/285/325/425mm
Center Distance
750/1000/1500/2000mm
Cross Slide Travel mm
330/380mm
Spindle Hole
80mm
Spindle Nose
ISO-C8 or ISO-D8
Spindle Taper
Metric 85mm
Spindle Speeds
24-1600rpm (15 Steps)
Spindle Motor
5.5kw
Max Travel of Cross Slide
300mm
Max Travel of Top Slide
130mm
Dia.of Tailstock Sleeve
65mm
Max Travel of Tailstock
120mm
Taper of Tailstock Sleeve
Mt5
Name
Metal Manual Lathe Machine
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84581900
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
245.00cm * 115.00cm * 175.00cm
Package Gross Weight
2000.000kg
Product Description
China High precision Horizontal Metal Manual Conventinal Turning Lathe Machine Price for saleFEATURES:
Oversized spindle bore of 80mm
Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand
Outward appearance of machine features large plains, making the machine more good-looking
Gapped bedways, which are super-audio frequency hardened (HB450 plus)
All gears hardened and ground by Reishauer grinding machine
Leadscrew and feedrod interlocked, both with overload protection
Automatic feed stopper
Configuration variable totally according to orders:
Metric or inch system; Right or left hand wheel; Halogen lamp; Quick change; Tool post; DRP; T-slot compound; Chuck guard; Leadscrew hood; Rapid traverse motor; Electromagnetic brake; Forced lubrication system
| Model | DETAILS | |||
| CHB HEADSTOCK | Spindle hole | 65mm | ||
| Spindle nose | ISO-D6 | |||
| Spindle taper | Metric 70mm | |||
| Spindle speed(Number) | (15steps)22-1800rpm | |||
| CHC HEADSTOCK | Spindle hole | 80mm | ||
| Spindle nose | ISO-D8 | |||
| Spindle taper | Metric 85mm | |||
| Spindle speed(Number) | (15steps)24-1600rpm | |||
| CHD HEADSTOCK | Spindle hole | 103mm | ||
| Spindle nose | ISO-D11 | |||
| Spindle taper | Metric 115mm | |||
| Spindle speed(Number) | (15steps)20-1200rpm | |||
| Model | CH6240B | CH6250B | CH6260B | |
| CH6240C | CH6250C | CH6260C | ||
| CH6250D | CH6260D | |||
| CAPACITY | Max.swing over bed | 400mm | 500mm | 600mm |
| Max.swing over cross slide | 240mm | 325mm | 360mm | |
| Max.swing over gap | 540mm | 630mm | 730mm | |
| Effective length of gap | 260mm | |||
| Center Distance | 1000\1500\2000\3000mm | |||
| Bed Width | 330mm | |||
| FEEDS | Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | ||
| Cross feeds range | 66kinds 0.036-2.019mm/rev | |||
| Metric threads range | 66kinds 0.5-28mm | |||
| Inch threads range | 66kinds 1-56inch | |||
| Moudle threads range | 33kinds 0.5-3.5mπ | |||
| Diametral threads range | 33kinds 8-56D.P | |||
| CARRIAGE | max travel of top slide | 130mm | ||
| max travel of cross slide | 300mm | |||
| Max.size of toolshank | 25*25m2 | |||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | ||
| Taper of tailstock sleeve | MT5 | |||
| max travel of tailstock | 120mm | |||
| MOTOR | Main drive motor | 5.5KW | 7.5KW | |
| Rapid traverse motor | 250W | |||
| Coolant pump motor | 125W | |||
| PACKING L*W*H | Center Distance(1000mm) | 245*115*175cm | ||
| Center Distance(1500mm) | 295*115*175cm | |||
| Center Distance(2000mm) | 345*115*175cm | |||
| Center Distance(3000mm) | 445*115*175cm | |||
| N.W/G.W | Center Distance(1000mm) | 1600/2000kg | 1650/2050kg | 1750/2150kg |
| Center Distance(1500mm) | 1800/2200kg | 1850/2250kg | 1950/2350kg | |
| Center Distance(2000mm) | 1950/2350kg | 2000/2400kg | 2100/2500kg | |
| Center Distance(3000mm) | 2100/2500kg | 2150/2550kg | 2250/2650kg | |
| ***STANDARD ACCESSORIES | ||||
| 3-jaw & 4-jaw | ||||
| Steady rest & follow rest | ||||
| Face plate | ||||
| Drive plate | ||||
| Thread-cutting dial | ||||
| Longitudinal touch stop | ||||
| Work lamp | ||||
| Coolant system | ||||
| Full-length splash guard(not for 3000mm length) | ||||
| Foot brake and brake ribbon | ||||
| Paddings | ||||
| Change gears | ||||
| Dead centre and centre sleeve | ||||
| Oil gun | ||||
| One whole set spanner | ||||
| ***OPTIONAL ACCESSORIES | ||||
| Rapid travel | ||||
| Live centre | ||||
| Digital readouts(SINO) | ||||
| CE-conformity(Chuck guard and Toolpost guard) | ||||
| Magnetoelectrical brake | ||||
| Taper cutting function | ||||
