Wheel Trailer Mounted Water Well Borehole Rotary Drilling Rig (GY-150T)
| US$5,800.00-7,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GY-150T
Certification
CE, ISO 9001:2000, ISO 9001:2008
Condition
New
Motor
Diesel Engine
Drill Hole Diameter
46-300mm
Drill Hole Depth
45-180m
Bit Type
Diamond Bit
Drilling Way
Rotary
Type
Two-Wheel Trailer
Usage
Geotechnical , Soil Survey, Water Well, Coal
Stability
Good
Price
Cheap
Rig Weight
630kg
Drill Tower Height
6.2m
Transport Package
in Plywood Case
Specification
150T
Trademark
GY
Origin
Changsha, China
HS Code
8430691900
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
185.00cm * 119.00cm * 153.00cm
Package Gross Weight
850.000kg
Product Description
Product Description GY-150T is a portable and multipurpose engineering exploration drilling rig, applicable to the engineering geological exploration in fields of industrial and civil buildings, railways, bridges, hydropower engineering, as well as small-diameter foundation pile hole drilling.Product Features 1. Large torque, multiple drilling speeds in an appropriate range.

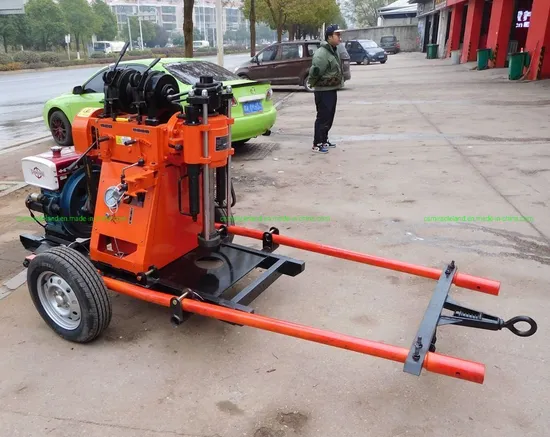

2. With 2-wheels trailer, the rig can be moved by towing the trailer.
3. Capable to drill inclined holes at different angle.
4. High efficiency drilling with hydraulic feeding structure.
5. Multiple usages, geotechnical investigation for engineering constructions, SPT soil test, mineral exploration, small size pile hole, water well boring.
Product Parameters
The technical parameter of the GY-150T Drilling Rig:
| Basic Parameters | |
| Drilling depth | 45-180m |
| Drilling diameter | 300-76mm |
| Drill pipe diameter | 42mm 50mm AW BW AWJ BWJ |
| Gross weight of drilling machine(engine not included) | 500kg |
| Dimension (length ×width × height) | 2050 × 1180× 1420 mm |
| Revolving Plate | |
| Rated speed | 60 200 400 610 1100 r/min |
| Maximum torque | 1800N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 20KN |
| Maximum Cylinder lifting force | 30KN |
| Lifter | |
| Lifting capacity | 24KN |
| Bobbin line speed (2 layers) | 0.20 0.72 1.26 2.8 m/s |
| Bobbin diameter | 125mm |
| Rope diameter | 11mm |
| Rope capacity | 26m |
| Oil pumps: | |
| Displacement: | 20ml/r |
| Normal speed | 2500r/min |
| Normal pressure | 20MPa |
| Max pressure | 25MPa |
| Drive motor | |
| Type | Changchai ZS1105 diesel engine |
| Rated power | 13.2KW |
| Rated speed | 2200r/min |
| weight | 163kg |
| Frame | |
| Type | Sliding type(with base frame) |
| Movable travel of drill | 400m |
| Distance between drill and hole-opening | 280mm |
