High Performance Multi Groove Knife Blocks for Winders
Basic Info.
Model NO.
HSS-J600
Paper Core Usage
Paintings Packaging, Instrument Package, Industry
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
3-8
Reelpipe Speed
3-60 M/Min
Wall Thickness of Paper Tube
0.5-3 mm
Certification
CE
Condition
New
After-sales Service
One Year Warranty
Paper Shelf Type
Integral Reel Stand
Main Motor
5.5 Kw
Cutting Way
Servo Synchronism Multi-Blade Cutting
Transport Package
Wooden Case
Specification
6000*1600*1600 mm
Trademark
Horsen
Origin
China
HS Code
84418090
Production Capacity
20sets/Month
Product Description

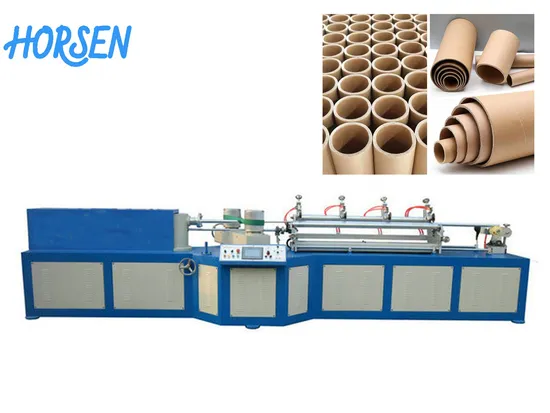

PAPER TUBE MAKING MACHINEUSE: Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy, food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE: Numerical control servo cutter device, high precision cutting; Automatically cut, automatically fall pipe, automatically change speed and revert; With online multi-cut blades, no need secondary cutting, save labor and time. Stable production at the highest speed 45 m/min Specification:
| Technical Parameter | ||
| Number of roller | 3-8 layers | |
| Tube diameter | 15-100 mm | |
| Tube wall-thickness | 0.5-3 mm | |
| Core mould fixed way | Flange chuck | |
| winding head | 2 | |
| Cutting way | Servo synchronism multi-blade cutting | |
| Gluing way | Double sides | |
| Operator | 1-2 person | |
| Winding speed | 3-60 m/min | |
| Speed control | Transducer | |
| Mainframe size & Weight | ||
| Mainframe size | 6000*1600*1600 mm | |
| Area space | 10000*10000 mm | |
| Weight | 3000KG | |
| Driving system | ||
| Main motor | 5.5 KW | |
| Reducer type | WPDO155 | |
| Reduce type | RV40-1:7.5 | |
| Conveyor reducer type | 0.37 KW | |
| Cutting motor | Servo motor | |
| Cut left-right control | Synchronous belt + servo motor | |
| Synchronism control cutting system | servo system | |
| Glue pump | 750 W | |
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any inquiry, pls feel free to contact us. We will try our best to satisfy with you !
