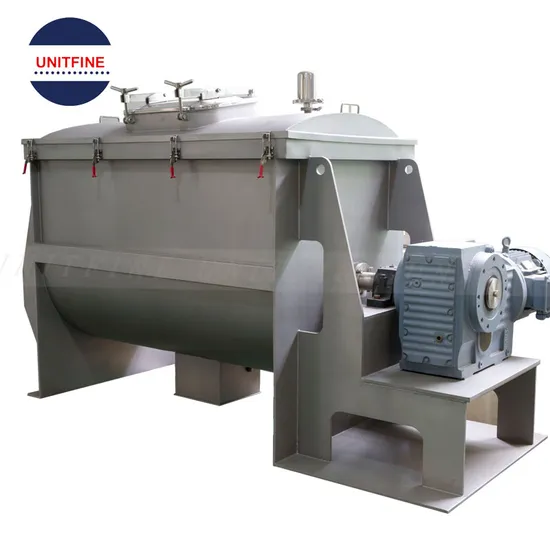

Ribbon Mixer/Horizontal Ribbon Mixer/Ribbon Mixer Machine/Ribbon Blender Mixer

Product Description

Introduction:
Ribbon mixer is widely used in chemicals, pharmacy, food, and construction materials industry, etc, which could be used for the mixing of powders, powders, and liquid, powders, and granules, etc.
Inside the mixer, there are ribbons in convective direction, inner and outer, up and down to even powder in a short time. Air leakproof device" is a patent design to prevent powder pollution. According to a particular powder, Heating system, Liquid Spraying system and a High-speed chopper can be installed in the mixer to solve the special mixing requirement.
Detailed Images>>>
Features:
The mixing blade is two spiral "S" type designs. Excellent and high-speed mixing efficiency. The powder won't be raised mixing operation. Complete and through of raw materials by ribbon agitator which creates two layers and counter-movement of flows. Model Selecting:
Generally, the ribbon mixer model is selected according to batch capacity.
Batch capacity: 0.1-20 Cubic meter per batch. Batch capacity: 0.3-15 ton per batch. Mixing time: 3 to 15 minutes. Material available: Stainless steel 316L, 321, 304 and carbon steel. Flexible Options for Clients:
Materials available to be selected: Ribbon mixer could be made of mild steel, Manganese steel, stainless steel 304, 316L, 321, and others. To save cost we can use different materials in contacting parts and noncontacting parts. Inner parts could be coated with Preservative,anti-seize compound, wear-resisting agent, etc. Surface finish: Sandblast, brushed treatment, mirror gloss finish.
Models Available>>>

Model	Volume (KG/L)	Motor (HP)	Dimensions (L*W*H Mm)
UFM-100	100/260	2	2210*600*1450
UFM-200	200/500	3	2310*710*1660
UFM-300	300/700	5	2310*900*1750
UFM-500	500/1200	7 1/2	2790*960*1830
UFM-1000	1000/2400	15	3420*1220*2150
UFM-2000	2000/4800	25	3900*1350*2450
UFM-3000	3000/6500	40	3700*1850*2803
Height from floor to outlet: 450 mm

How to select a ribbon mixer?
Please tell the volume of batch products, range 0.1 to 20 cbm. Select material of the mixer, contacting products parts, and other parts, so please tell your own products working condition, sanitary requirements. Please tell specific gravity and flowability of your products, with which we would select a right motor for you. Please tell if you need any other auxiliary equipment, such as cool and warm keeping, spay etc. Please tell openings requirement of the mixer, such as feed inlet, cleaning windows, exhaust hole etc. Please tell discharge mode and driving system: manual, pneumatic or electric? *Important notice: Model selection is a key step to get your solution, please provide your products information and production layout as detailed as you can, so that our engineers could find you the best solution.
