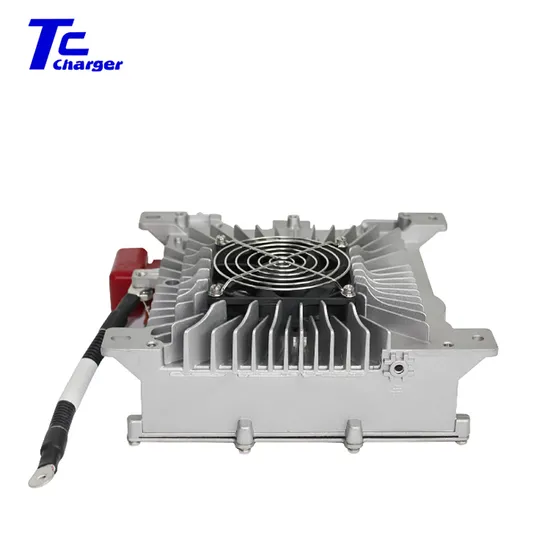

2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
Basic Info.
Model NO.
CD-MF01
Usage
Electric Vehicle
Interface
Other
Color
Silver
Input Voltage
AC90V~264V
Product Name
2 in 1 Obc+DC
Charger/DC Power
3.3kw/1kw
VAC-DC Output Votage (V)
72V
Output Voltage Range
50-107V
VAC-DC Output Current(a)
35A
VAC-DC/DC-DC Model
HK-Mf-72-40/Tdc-Iy-72-12
DC Input Votage(V)
72
DC Input Current(a)
14
Max Input Current(a)
23
DC-DC Output Votage (V)
14
DC-DC Output Current(a)
72A
Baud Rates
250K or 500K
Transport Package
Carton
Specification
250(length) x 222(width) x 108.7(height)(fan-coole
Trademark
TC charger
Origin
China
Production Capacity
1000PCS/Month
Product Description
Product Description| Basic Specification | Protection grade | IP67 | |
| Input voltage range | AC90V~264V | Operation temperature | - 40ºC~85ºC |
| Input current | 16A | Storage temperature | - 55ºC~90ºC |
| Frequency | 45Hz~65Hz | Charging control | CAN or Enable |
| Power factor | ≥0.99 | Size | 250(length) x 222(width) x 108.7(height)(fan-cooled) |
| Efficiency at full-loading | ≥93% | Protection | Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature |
| Mechanical impact and vibration grade | QC/T 895-2011 | Cooling way | Enforce Air Cooling, liquid-cooling |
Product Parameters
| Model | Output voltage | VAC-DC model | Power | VAC-DC output votage (V) | Output voltage range | VAC-DC output current(A) | DC-DC model | DC-DC power |
| CD-MF01 | 72V | HK-MF-72-40 | 3.3KW | 72 | 50-107V | 35A | TDC-IY-72-12 | 1KW |
| CD-MF03 | 108V | HK-MF-108-32 | 3.3KW | 108 | 80~161V | 32A | TDC-IY-108-12 | 1KW |
| CD-MF04 | 144V | HK-MF-144-23 | 3.3KW | 144 | 95~202V | 23A | TDC-IY-144-12 | 1KW |
| CD-MF05 | 312V | HK-MF-312-10 | 3.3KW | 312 | 200~450V | 10A | TDC-IY-320-12 | 1KW |
| Model | Type of cooling | DC input votage(V) | DC input current(A) | Max input current(A) | DC-DC output votage (V) | DC-DC output current(A) | Net Weight (kgs) | Gross Weight (kgs) | Dimension (CM) |
| CD-MF01 | Enforce Air Cooling | 72 | 14 | 23 | 14 | 72A | 5.5 | 6.5 | 40*35*21 |
| CD-MF03 | Enforce Air Cooling | 108 | 10 | 17 | 14 | 72A | 5.5 | 6.5 | 40*35*21 |
| CD-MF04 | Enforce Air Cooling | 144 | 8 | 13 | 14 | 72A | 5.5 | 6.5 | 40*35*21 |
| CD-MF05 | Enforce Air Cooling | 320 | 3.5 | 6.2 | 14 | 72A | 5.5 | 6.5 | 40*35*21 |
