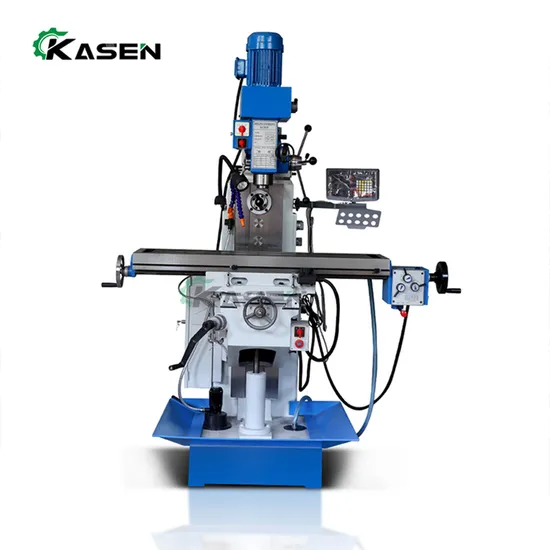

Zx6350 Universal Horizontal Knee Type Manual Milling Machine with 3 Axis Dro

Product Description

Cheap Vertical Milling and Drilling Machine Zx6350
Product Description
Features:
Gear driven; X axis auto feed
This model pass CE standard.
ZX 6350C is a kind of economic-type drilling and milling machine, light and flexible, is used for mechanical maintenance, non-batch parts processing and components manufacturing.
The vertical head swivels to both sides (+-) 90
Standard accessories.
3-axis position indicator, 2 milling arbor (22, 27mm), collet set, drill chuck, mill chuck, reduction sleeve,
Work light, coolant.
Optional Accessories:
DRO on X, Y, Z--AXIS
Clamping kit
Universal divind head
Rotary work table.
Main technical specifications:

Specifications	Unit	ZX6350C
Spindle taper		M.T.4/ISO40/ISO30/R8
Distance vertical spindle to table	mm	100-460
Distance horizontal spindle to table	mm	0-360
Distance spindle to column	mm	200-500
Spindle seeds range	r/min	(8 steps)115-1750(vertical); (12 steps)40-1300(horizontal)
Automatic Feed Series sleeve	mm	120(vertical)
Table size	mm	1120×280
Table travel	mm	600/250/360
Distance horizontal spindle to arm	mm	175
Table feeds range(x/y)	mm/min	12-370(8 steps)(max.540)
T of table (no./width/distance)	mm	3/14/63
Main motor	kw	0.85/1.5(vertical);2.2(horizontal)
Main motor	kw	0.85/1.5(vertical);2.2(horizontal)
Motor of table power feed	w	370
Coolant pump motor	w	40
N.W/G.W.	kg	1250/1450
Overall dimension	mm	1660×1340×2130

After Sales Service
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost


FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
