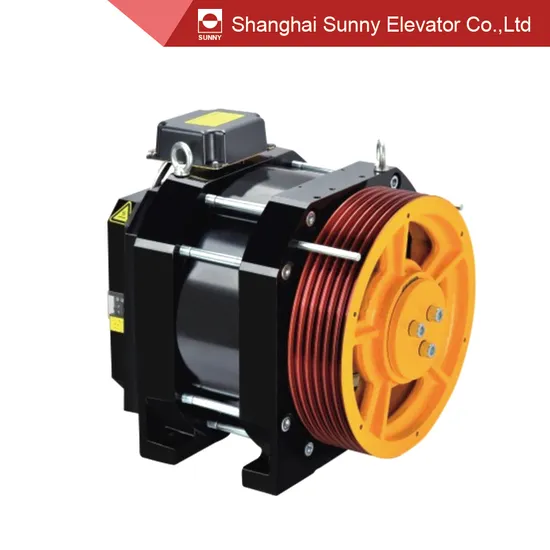

10mm Rope Dia Load 630kg Lift Gearless Traction Machine

Product Description

Load 630kg~1000kg with Lift High Quality Gearless Traction Machine for Elevator
Characteristics

Load	630kg~1000kg	Number of Grooves	4-6	Rating	S5~40%
Speed	0.5~3.0m/s	Shape of Groove	U Shape	Braking	Shaft Braking
Suspension	2:1	Y=35°	β=96°	Voltage of Brake	DC110V
Max.Static Load	5000kg	Pole pairs	12	Current of Brake	1.1A*2
Rope Dia	10mm	Insulation Standard	F	Encoder	Heidenhain 1387-2048
Sheave Dia	400mm	IP Code	IP41	/

Load (kg)	Speed (m/s)	Height (m)	Torque (Nm)	Sheave Dia. (mm)	Rope Dia. (mm)	Groove (pcs)	Distance Between Grooves	Power (KW)	Rated Voltage (V)	Current (A)	Frequency (Hz)	Rated Speed (rpm)
630	0.5	≤50	420	400	10	4	15	2	380	5	9.5	48
	0.63	≤50						2.7		9	12	60
	0.8	≤50						3.4		9	15.2	76
	1	≤50						3.7		10	19	95
	1.5	≤80						6.3		16	28.6	143
	1.6	≤80						6.7		16	30.4	152
	1.75	≤80						7.3		18	33.4	167
	2	≤80						8.4		20.3	38.2	191
800	0.5	≤80	535	400	10	4	15	2.7	380	6	9.6	48
	0.63	≤80				4		3.4		8	12	60
	0.8	≤80				4		4.3		11	15.2	76
	1	≤80				5		5		12	19	95
	1.5	≤80				5		8		20	28.6	143
	1.6	≤80				5		8.5		20	30.4	152
	1.75	≤80				5		9		21	33.4	167
	2	≤80				5		10		24.9	38.2	191
	2.5	≤80				5		12.5		31.6	47.6	238
	3	≤80				5		15		38.5	57.2	286
1000	0.5	≤80	669	400	10	5	15	3.3	380	7	9.6	48
	0.63	≤80				5		4.2		13	12	60
	0.8	≤80				5		5.3		13.2	15.2	76
	1	≤80				5		6.3		14	19	95
	1.5	≤80				6		10		24	28.6	143
	1.6	≤80				6		10.6		25	30.4	152
	1.75	≤80				6		11.7		25	33.4	167
	2	≤80				6		13.4		28.8	38.2	191
	2.5	≤120				6		16.7		39.8	47.6	238
	3	≤120				6		20		45	57.2	286

This is our hot product:
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 33-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience for exporting all kinds of elevator & elevator parts to 80 countries all over the world.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won't break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
