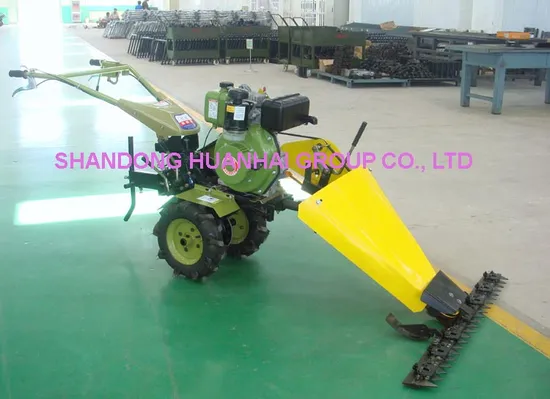

Sh41 Tiller Used Grass Cutter
| US$650.00 | 5 Sets (MOQ) |
Basic Info.
Model NO.
SH41
Application Field
Agriculture, Livestock, Aquaculture, Fisheries
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel, Petrol / Gas
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, CE, CE
Color
Green
Warranty
1 Year
Moving Way
Tractor-Mounted
Cutter Type
Sickle-Bar Mower
Applicable Area
500-1000m²
Feature
2-Stroke, Height Adjustable Handles, Single Cylinder
Cutter Kind
Straight Metal Blade
Mowing Requirements
Truncated Type
Usage
Common Lawn, Forest Lawn, Soccer Field, Rugby Field
Transport Package
Seaworthy Packing
Specification
ISO, CE
Trademark
huanhai
Origin
Shandong, China
Production Capacity
20000 Units Per Year
Product Description
Powered by SH41 powertiller, this grass cutter machine can be widely used for agriculture purpose grass cutting. The operation is simple, and efficiency is high, also it is portable and easy to move.Powered by R170 diesel engines, it's simple and compact in construction, and light in paddy fields, Ideal for paddy fields, and has the advantage of reliability, long service life, easy and nimble to operate, as well as adaptable.
With corresponding implements, the tractor can go on plowing, harrowing, ridging, seeding, fertilizing, harvesting and so on, and it can also transport equipped with a trailer of 0.75 ton, or as fixing power, can be used for threshing, grinding, milling and pumping.
| Tiller | Type | 1WG-4 (with 170 diesel engine) |
| Overall dimension (mm) | 1600*590*830 | |
| Tiller width (cm) | 45-90 | |
| Tiller depth (cm) | 5-25 | |
| Rotary blade | 24 | |
| Tire | 400-7 ( type pattern ) | |
| Shifting | 2+2 | |
| Engine | Model | 170F |
| Bore×Stroke (mm) | 70*70 | |
| Displacement (ml) | 0.269 | |
| Max power (kw/rpm) | 3.23 ( 4HP ) | |
| Type | single cylinder, air cooling, horizontal | |
| Start mode | Recoil | |
| Packing | Overall dimension (mm) | 1120*450*770 |
| N,W / G.W(kg) | 115/125 | |
| 40HQ (set) Loading quantity | 150/210-6 |
