PV Tracker Electrical Motor Slewing Drive

Product Description

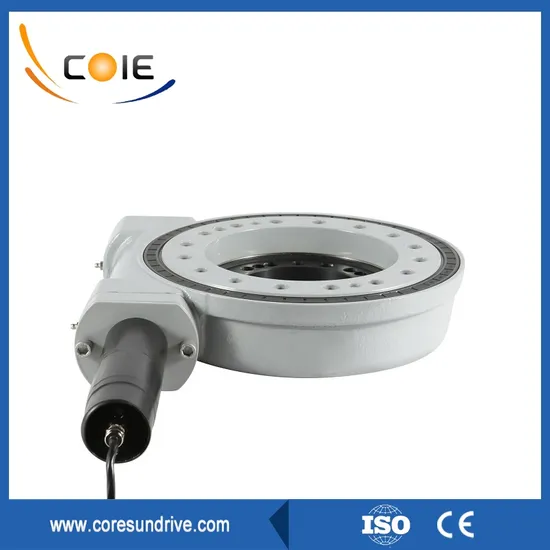

Coresun Drive SC9 slewing drive gear motor worm gear for 18-32 square meter solar tracker system.
Slewing drive motor for single and dual axis solar plant,PV and CSP system.

Model	SC9	IP	IP65
Brand	Coresun Drive	Available Load Weight	500-800kg
IP Class	IP65	Output Torque	854N.m
Tilting Moment Torque	33.9KN.m	Holding Torque	38.7KN.m
Mounting Bolts	M16	Electrial Motor	24VDC
Gear Ratio	61:1	Efficiency	40%

Coresun Drive Equipment Changzhou Co., Ltd. Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear. The rotation of the horizontal screw turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases. The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.
Coresun Slewing Drive movement can reduce power consumption, since the security role. In addition to the field of use in the daily solar power systems are usually used for Special vehicle, heavy-duty flat-panel truck, container cranes, truck mounted crane, automobile crane and aerial vehicles, cranes, gantry cranes, small wind power stations, space communications, satellite receiver, etc...The Slewing Drive in the solar photovoltaic industry, the general configuration DC planetary reduction motor or AC geared motors; Main configuration of the hydraulic motor as a power-driven construction machineryCoresun Slewing Drive principle of the large transmission ratio of the deceleration device to transmit motion and power between the two axes staggered in space. The Slewing Drive transmission is usually the case of the main components of the worm and wheel bearings, shell, and the power source
Slewing drive is a special bearing. And a slewing drive usually consist of slewing bearing, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.Coresun Slewing Drive and rotary products, compared with the ease of installation, ease of maintenance, Installation space savings advantages to a greater extent.Slewing drives are widely used in aerospace area, solar power systems, wind turbines, satellite broadcasting system, and engineering machinery like truck cranes, and man lifts, etc. Recently years, it has been prosperously used in photovoltaic power generation systems, special vehicle, heavy-duty flat-panel truck, container cranes, truck mounted crane, automobile crane and aerial vehicles, cranes, gantry cranes, small wind power stations, space communications, satellite receiver, etc.
Advantage Of Gear Motor Slewing Drive
High Tracking Precision≤1mrad
New Sealing Structure IP65
Double Enveloping Hourglass Worm, Drive Torque Improved by 35%
Special Heat Treatment Process.
Higher corrosion resistance performance

Coresun Drive Slewing Drive Motor Production Photo and Application
Coresun Drive processes the metallography detection to check the material and organization structure of worm shaft,slewing gear and casting housing.
Coresun Drive testing reports for slewing bearing,worm shaft and finished slewing drive
