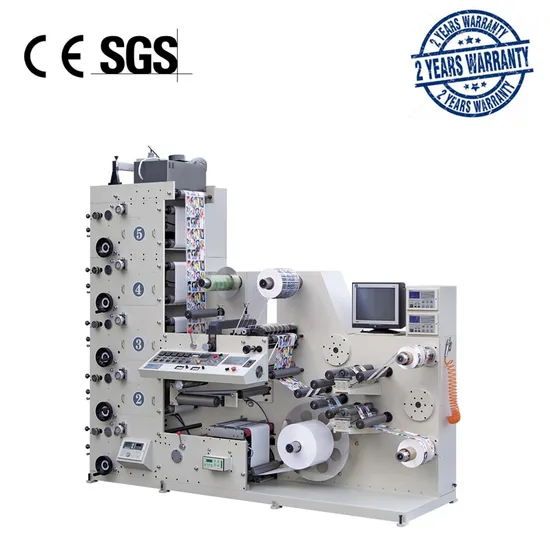

AC320-5B Multi-Color Flexo Paper Label Printing Machine

Product Description

AC320-5B Multi-Color Label Printing Machine
CHARACTERISTIC:
1, The Multi-Colors Flexographic Printing Machine adopts the ceramic alinox cylinder to transfer the ink.
2, Unwinding and rewinding controlled by magnetic power brake, clutch, (Or controlled by auto tension controller of Mitsubishi of Japan).
3, Printing unit adopt 3600 plate-adjustment each.
4, IR dryer for each printing unit.
5, The spare parts have a die-cutting station with the machine which made printing and die-cutting finished in one process, but without magnetic cylinder, each design need change magnetic cylinder.
6, The ink rollers will be separated from the printing roller, and keep running when the machine stopped.
7, The main motor is adopted frequency conversion for speed controlling.
8, Support paper from roll material, print, light, dry automatic ally by infrared ray, laminating and rewinding completed in one time, It is an ideal machine for printing trade in voice and top-grade adhesive label.
9, The thickness of printing plate: 1.7 mm
MAIN CONFIGURATION:
Printing roller: 5 colors X 3sets=15PCS, the sizes decided by the buyer
Anliox cylinders: 5 colors = 5PCS, the lines can be choose from 200 to 900 by the buyer
Plate-making machine: 1 set
Turn bar: 1set
Unwind tension controller: 1 piece Mutsubishi of Japan
Transducer: 2 piece Mutsubishi of Japan
Rewind tension controller: 1 piece made in China
Magnetic power brake: 2 PS Ningxia in China
Electromagnetism valve: SMC 1piece Japan
Inverter: Dongyuan Brand Taiwa (stop automatic when paper lack)
Contactor: Siemens 3TB4422 Germany
Center relay: Siemens 3TH8244 Germany
Temperature Controller: Yuyao in Zhejiang
Temperature Instrument: Yuyao in Zhejiang
All Switch Changjiang Brand: Jiangsu in China
Other low-pressure wiring: Yaohua in China
MAIN TECHNICAL SPECIFICATION:

Model	AC320-5B
Printing Speed	50-60m/min
Printing Color	5 colors
Max Width of Paper	320mm
Max Printing Width	310mm
Max Unwinding Diamter	650mm
Max Rewinding Diameter	650mm
Printing Length	175-320mm
Precision of Chromatogtaphy	±0.1mm
Machine Weight	About 3200kg
