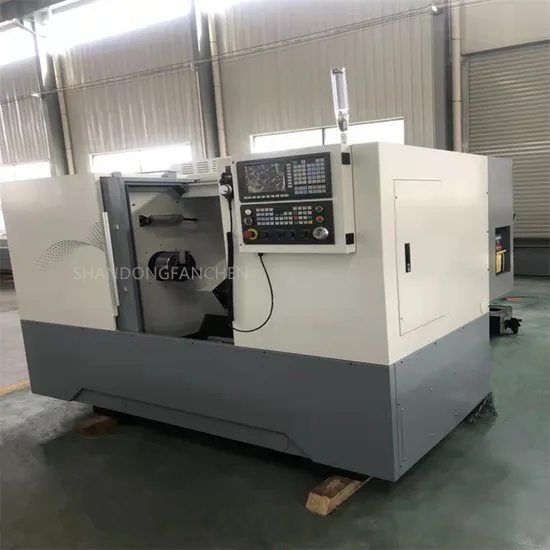

CNC Oblique Lathe Tck36 Whole Machine High-Precision Cutting Machine Tool
| US$11,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
tck36
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
360
Maximum Working Length
300
X-Axis Travel
170
Spindle Speed Progression
Stepless Speed Change
Z-Axis Travel
350
Through Hole Diameter
65
Standard Chuck
8
Tailstock Sleeve Stroke
60
Arbor Section
25×25
Taper of Tailstock Sleeve
Mohs 4
Transport Package
Wooden
Specification
2450/1600/1700
Trademark
FANCHEN
Origin
China
Production Capacity
10
Packaging & Delivery
Package Size
1200.00cm * 1500.00cm * 1800.00cm
Package Gross Weight
2200.000kg
Product Description
Machine type entry | TCK36A |
| ZBed surface Z large up rotation diameter | Φ360mm |
| Z large machining diameter on the tool holder | Φ140mm |
| Z large processing length | 300 |
| Spindle head type (optional chuck) | A2-5 |
| Spindle motor power | 3.7/5.5KW |
| Spindle Z high speed | 4000pm |
| Main shaft hole diameter | Φ48 |
| Rod diameter | Φ41 |
| X/Z axis screw specifications | 25*10/32*10 |
| X-axis limit travel | 170 |
| X-axis motor torque | 6N.M |
| X/Z axis gauge | 30/30 |
| Z-axis limit travel | 350 |
| Z-axis motor torque | 6N.M |
| X, Z axis connection mode | Direct connection |
| Dota | Horizontal 4-station hydraulic tool tower |
| Sleeve diameter | Φ65 |
| Sleeve travel | 60 |
| Tail-seat Z large travel | 200 |
| Tailstock sleeve taper hole | Morse 4# |
| Bed form and slope | Integral /45° |
| Length * Width * Height (mm) | 2150×1600×1750 |
| Weight (approximate weight) | 2200kg |
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
