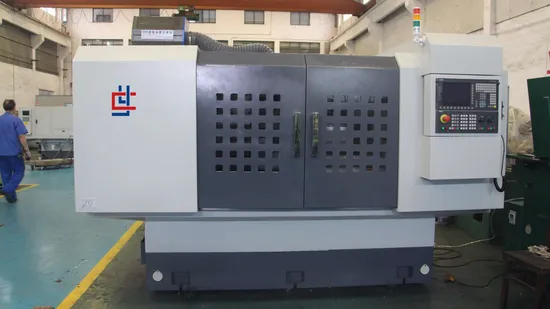

Mk2110 Internal Hole and Internal Cone Hole Grinding Machine

Product Description

Product Description
Main purposes of the machine tool:
MK2110 is a two-axis, two-linkage CNC internal grinder, capable of grinding the inner bore, inner conical hole, stepped hole, inner end face, and outer end face of workpieces. The grinding cycle is automatically completed, including automatic feeding, automatic rough grinding, fine grinding, automatic wheel dressing, automatic compensation, manual compensation, and other functions.
Processing object:
The main processing objects of this machine tool are: This machine tool can grind inner holes, step surfaces, and inner end faces. It is suitable for inner round processing of parts with diameters ranging from 10-100mm and inner holes up to 150mm.
Product Parameters
Key Technical Parameters for MK2110 CNC Grinding Machine:

Serial number	Name	Specification
1	Grinding hole diameter range	10-100mm
2	Maximum grinding depth	150mm
3	Maximum diameter of the workpiece	600mm
4	Maximum load capacity of the workpiece	50kg
5	Inner hole roundness	2μm
6	Cylindricity of inner hole	3μm
7	Inner hole surface roundness	Ra0.4

Detailed Photos
