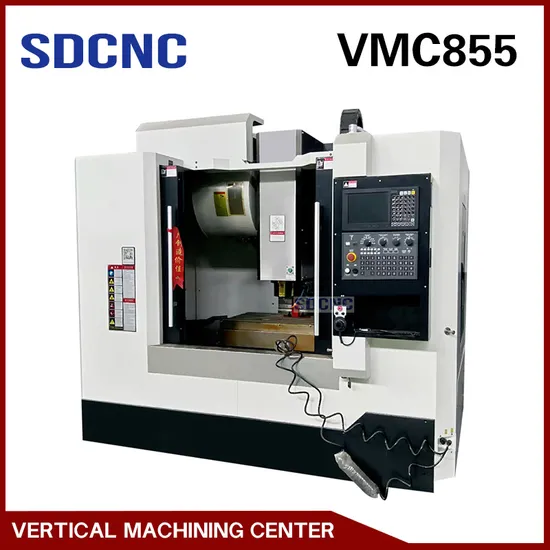

Vmc855 High-Performance CNC Milling Machine Custom CNC Milling Lathe Machine
| US$24,500.00-26,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC855
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Tool Magazine
Arm 24
Distance From Spindle Axis to Column Sur
595mm
Cutting Feed Speed
1-8000
Main Motor Power
11/15kw
Transport Package
Wood Packing
Specification
2700*2280*2550
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
270.00cm * 228.00cm * 255.00cm
Package Gross Weight
500.000kg
Product Description
| Specifications | Units | VMC855 |
| Table size | mm | 1100*550 |
| X axis travel | mm | 800 |
| Y axis travel | mm | 550 |
| Z axis travel | mm | 550 |
| Max. worktable load | kg | 500 |
| T slot(number-width-pitch) | 5-18x90 | |
| Max. spindle speed | rpm | 8000(Optional:10000 ) |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 11/15 |
| X/Y/Z rapid traverse speed | m/min | 24/24/24 |
| Cutting feed speed | mm/min | 1-8000 |
| Guide rail type | Linear rail | |
| Distance from spindle axis to column surface | mm | 595 |
| Distance between spindle nose and worktable surface | mm | 120-670 |
| Positioning accuracy | mm | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | Arm 24 | |
| Max. tool diameter | mm | φ78( Adjacent)/ φ120(Apart) |
| Max.tool weight | kg | 8 |
| Machine weight | kg | 500 |
| Overall dimension | mm | 2700*2280*2550 |
Company Profile
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
