Window Processing Profile Extrusion Making Machine

Product Description

>>>Jinan Yuefeng Machinery Co., Ltd founded in 1983, a professional manufacturer specialized in producing PVC and Aluminum win-door equipment, curtain wall equipment and insulating glass equipments, we are the foremost pioneet in the win-door industry.>>>Yuefeng has a fully equipped machining center and highly qualilfied technicians. With the year of effort and the support from all strata of the society, we are becoming stronger. It is specializing in developing and manufacturing PVC & aluminum window and doors machines, curtain-wall machines, insulating glass machines, and milling machines. It is the most powerful champion and promoter in the win-door industry. Our products exported to Middle East, Russia, South Africa, Vietnam, India, srilanka us, and South America etc., and deeply favored by the customers.>>>"Profession, factualism, enterprising, innovation" is the enterprise culture in the company; Strengthened quality certification system makes our products in the leading position in the industry.

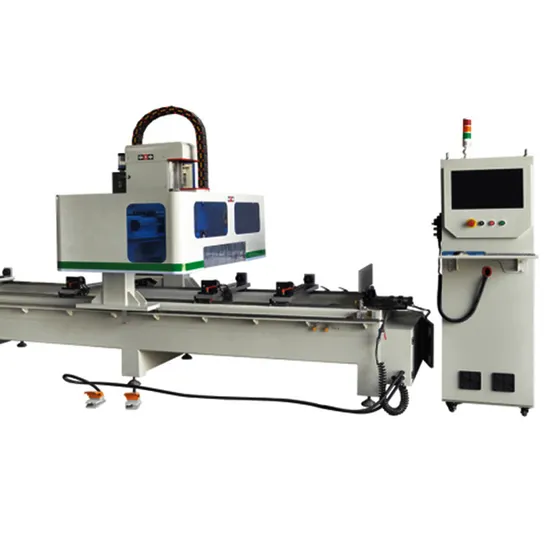

CHLXA-CNC-7000 CNC Three-axis Machining Center


Window Processing Profile Extrusion Making Machine
This machine is designed for tapping, routing and milling holes, lock holes, launder and other slots on the profiles of curtain walls. 1.It can work on various profiles.
2.It adopts YASKAWA servo-motor and driver which are made in Japan.
3.It adopts high speed HSD spindle of Italy
4.It adopts HIWIN linear guide and YYC grinded gear racks result highly precise process.
5.It adopts high- quality computer control system, CAD-CAM software, which are used in industry area specially.
6.It adopts SEIMENS electrical and pneumatic products, solenoid valves, SMC gas resource processors, and JPC air cylinders.
7.Revolving six position mills makes the mill-changing convenient.
8.0Double profile locating devices, no need to stop the machine while change the profiles. 9.With half-close safeguard device to insure the personal safety of the operator.

Model	CHLXA-CNC-7000
Input voltage	380V 50Hz
Input power	12Kw
Spindle power	7.5Kw
Spindle speed	0~18000r/min
X-axes travel	7200mm
X-speed	0~60m/min
Y-axes travel	900mm
Y-speed	0~30m/min
Z-axes travel	300mm
Z-speed	0~20m/min
Process range	7000×600×280mm
Overall dimension	11000×1800×2300mm

>>>.Glass Curtain Wall Machine.
>>>.Arc Bending Machine
>>>.Corner Crimping Machine
>>>.Glass Edging Machine
>>>.Glass washing Machine
>>>.Butyl Coating Machine
>>>.Two-component Extruder Machine
>>>.Insulating Glass Machine
>>>.End Milling Machine
>>>.Machining Center
>>>.Welding Machine
>>>.Cutting Machine
>>>.Insulating Glass Solution
>>>.Aluminum Window and Door Solution
>>>.Upvc Window and Door Solution



MORE>>>
1.Are your company a trading one or a factory?
Factory + trade (integration), 35 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating
glass equipment and curtain wall equipment.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?
We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
