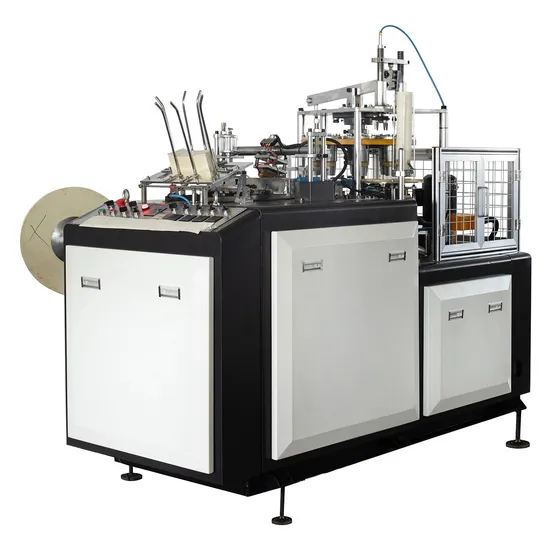

Machine to Produce Paper Cups, Cartoon Cup Machine, Paper Cup Machine in Japan
| US$6,500.00-7,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW-DP14
Cup Size(Ounce)
3-14oz
Speed
50-70PCS/Min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
Capacity
50-70 PCS/Min
Color
Grey and White
Cup Size
3-14oz
Raw Material
Single and Double PE Coated
Power
6kw
Voltage
220/380V
Computerized
Yes
Weight
1400kg
Overall Size
2000*1000*1600mm
Transport Package
Woodencase
Specification
SGS
Trademark
chinaworld
Origin
China
HS Code
84413090
Production Capacity
300 Sets
Product Description
Paper Cup Maker Making Forming Machine Price JBZ Product DescriptionCW-DP14 paper cup machine is driven by the main motor to drive the whole machine. Realize the perfect combination of chain and cam.The machine uses a single aluminum plate instead of three-plate machine, greatly reducing the machine failure rate and reducing the training time for the operators. 3-14oz paper cups can be customized according customer's requirement. It is a fully automatic paper cup forming equipment, through multi-row automatic paper delivery, paper retreat device (ensure accurate positioning), ultrasonic or copper sealing, mechanical paper cylinder transfer, oil injection, bottom folding, preheating,knurling, cup unloading, and other continuous procedures
Product Parameters
| Machine model Model | CW-DP14. |
| Production capacity of Production speed | 50-70 pcs/min. |
| Voltage | 380V/50hz Three-phase |
| Paper Cup Size | 3oz-14oz. |
| Machine package size | 2,280 x1180x2100mm (L*W*H) |
| Paper Material | 160-350g |
| Power supply: Power | 7.8KW. |
| Machine weight is Weight | 1900Kg. |
ZHEJIANG CHINAWORLD MACHINERY CO.,LTD is a profecianal machinery manufacturer and export company.Our machinery factory is specialized in producing all kinds of non-woven and paper products machine.Such as Face Mask Making Machiney,Non-woven Bag Making Machine,Non-Woven Cap and Shoe Cover Machine,Paper Cup Machine,Paper Straw Making Machine,Paper Plate Making Machine,Paper Cover Making Machine etc.
