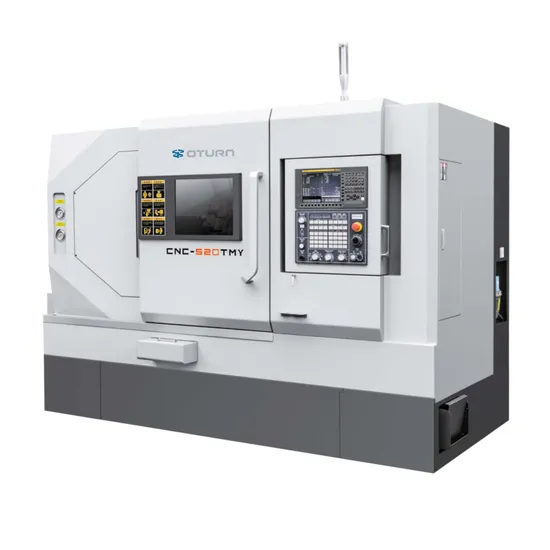

Heavy Duty Slant Bed CNC Metal Lathe Machine Slant Bed 40 Degree Turning Center

Product Description

Product Description
Our Siemens Controlled CNC Lathe Machine Slant Bed 40 Degree Turning Center is engineered for unparalleled efficiency and robustness. Cast as a single piece using high-tensile Meehanite cast iron and featuring a hot-flow horizontal design, it guarantees optimum year-round performance. The machine boasts exceptional shock resistance, vibration absorption, and minimal deformation, ensuring durability and superior performance.
Utilizing advanced Finite Element Analysis (FEM), the design of the integrated molding machine and stiffeners has been optimized, enhancing mechanical strength by an impressive 30% over traditional designs. This series excels in heavy cutting tasks while maintaining long-term ultra-high precision. The heightened rigidity not only extends tool life but also ensures consistent, superior performance.
High rigidity, heavy cutting capabilities, and exceptional stability
Featuring an integral cast inclined bed and 40° inclined guide rails, this design facilitates easy workpiece handling and smooth cutting operations. The thick reinforcement ribs significantly reduce distortion and thermal deformation, while the wide bed and precision rolling linear guides enable the machine to sustain heavy cutting and maintain long-term accuracy.
The fully enclosed sheet metal design keeps turning iron and coolant contained within the machine, providing a safe and clean working environment.
The spindle box's structural design minimizes thermal deformation, ensuring high-precision and stable cutting operations.
Our lubrication system features quantitative pressurized thin oil lubrication, providing consistent and precise lubrication to each screw, guide rail, and other critical points, thereby enhancing the machine's stability.
Equipped with a precision roller linear guide rail with a 35MM track width and a large-span saddle guide rail, the machine supports heavy cutting for extended periods with exceptional stability.
The feed unit is equipped with a 32mm diameter ball screw, preloaded at both ends to counteract precision loss due to thermal elongation, ensuring consistent accuracy.
High precision and high dynamic response
Our spindle, supported by two pairs of high-precision NSK P4 bearings, offers exceptional rigidity and rotation accuracy. With stepless speed regulation powered by an AC servo motor, the spindle delivers consistent performance.
Driven by a dedicated V-belt spindle system, the spindle's maintenance is simplified and the impact of motor-generated heat on spindle accuracy is minimized. Precision-adjusted pulley ratios enable simultaneous achievement of the motor's maximum speed and spindle speed, maximizing cutting capabilities while maintaining torque.
Thermal stability
The spindle box and sliding saddle are aligned on the same angular plane, reducing distortion from thermal deformation and ensuring continuous precision.
High-speed rolling bearings and quantitative grease sealing lubrication are employed to maintain the thermal stability of both the body and spindle temperatures.
Product Parameters

Item		Specification
Bed	The bed and base are made of high-quality cast iron, and the bed is slanted at 30°.
Processing range	Maximum rotation diameter of bed	600mm
	Maximum processing diameter of discs	300mm
	Maximum processing diameter of pallet	300mm
	Maximum processing length of bar	500mm
	Maximum bar hole diameter	Φ51mm
Travel Feed	X-axis maximum travel	300mm
	Z-axis maximum travel	590mm
	Y-axis maximum travel	±50mm(Interpolation)
	X/Z/Y axis rapid movement rate	30m/min
	X/Z/Y screw diameter/pitch	32/10mm
	X/Z/Y linear guide width	35mm
	X-axis servo motor	β12(with brake)
	Z-axis servo motor	β12
	Y-axis servo motor	β12(with brake)
	Servo turret motor	3N.m
	Power head motor	β12
Precision	X/Z axis positioning accuracy	±0.003mm
	X/Z axis repeat accuracy	±0.003mm
Moving tailstock	Tailstock sleeve taper hole/diameter	Mohs #5
	Tailstock moving travel	80~630mm
	Tailstock pressure range	5~30Kg/cm2
	Tailstock moving method	Programmable hydraulic movement
Spindle	Spindle nose type	A2-6
	Spindle through hole diameter	Φ66mm
	Spindle maximum speed	4500 rpm
	Spindle motor power	11KW
	Chuck/rotary cylinder	8 inches
Turret	Servo powered turret	BMT55/12 stations
	Cutterhead size	330
	Tool holder specifications	25×25
	Boring tool holder	Φ32mm
	0° side milling head (1 piece)	ER32/3000 rpm
	90° side milling head (1 piece)	ER32/3000 rpm
Other	Total capacitance	26KW
	Machine tool net weight	About 4700Kg
	Machine size (length*width*height)	3050×2000×2050mm

Products Configurations
