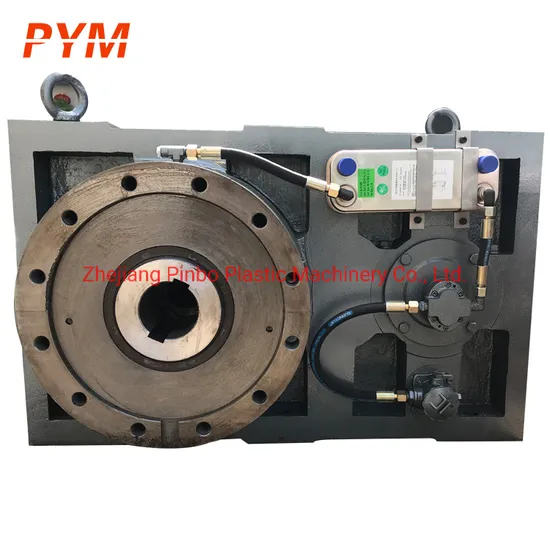

Zlyj Series Plastic Extruder Speed Reducer Gearbox

Product Description

1) Small volume
2) Big transmission torque
3) High efficiency
4) Low consumption
ZLYJ gearbox series are transmission devices, which are specially designed for single-screw extruder with high precision, hard gear surface, accompany with thrust. Adopting the technical specifications stipulated in JB/T9050. 1-1999, all ZLYJ gearboxes are designed accordingly.
Main Features:
1.The material of gear is the high strength alloy steel, it is manufactured by carburizing, quenching (and other heat treatment), gringding process at last. The gear is in high precison ( 6 grade ) and high hardness ( reaches HRC54-62). Besides, it features low noise when operating.
2. It contains high bearing ability thrust, which is performed reliable and can withstand larger axial thrust.
3.All the items are treated by forced lubrication and cooling system except very few small specification products.
4. ZLYJ series gearbox is adopted by six-side processing box. Its normal installation is horizontal, but can also be changed to vertical installation according to customer's requirment.
5.Efficiency transmission, low noise, long operaton time.
Why choose us ?
A> long time experience and history
B> long time nitriding treatment and heating treatment by itself
C>advanced Fanuk series CNC computer-controlled milling machines
D>depth hole drilling machine in 10meters length, which ensure the straigtnss of barrel inside.
E> CAD drawing confirmation before start making
F> Prompt after sale service
G>Land owner and registration capital 25,000,000RMB

Type	Spec	Input Power(kw)	N( enter)	N(output)	Output Torque	Permitted axial thrust of output shaft(KN)	Screw Diameter	Length-diameter ratio
					(N@m)
ZLYJ	112-8	5.5	800	100	525	35	Ø35	25:01:00
	133-8	8	800	100	764	39	Ø50	25:01:00
	146-10	11	1000	100	1050	54	Ø55	25:01:00
	173-10	18.5	900	90	1962	110	Ø65	25:01:00
	200-12.5	30	1000	80	3581	155	Ø75	25:01:00
	225-12.5	45	1000	80	5371	180	Ø90	25:01:00
	250-16	55	1120	70	7503	192	Ø105	25:01:00
	280-16	75	960	60	7643	258	Ø110	25:01:00
	315-16	85	960	60	13528	287	Ø120	25:01:00
	330-16	110	960	60	17507	360	Ø135	25:01:00
	375-16	132	960	60	21008	390	Ø150	25:01:00
	395-16	185	960	60	29442	400	Ø160	25:01:00
	420-16	160	960	60	31831	430	Ø160	25:01:00
	420-16	220	960	60	31831	430	Ø170	25:01:00
	450-20	213	1000	60	40640	500	Ø160/Ø170	25:01:00
	560-17	540	1000	50	84034	700	Ø200	25:01:00
	630-10	540	1000	50	103132	770	Ø250	25:01:00
